Aluminum cutting barcode labels help connect physical parts with their job records. Start by defining what each label identifies, what happens when it is scanned and who updates the record after a change. A code that scans successfully can still point to the wrong bundle or an outdated instruction.
For buyers reviewing a cutting workflow, the useful demonstration follows the material from the saw to the receiving operation. These five checks cover the label’s identity, its record, placement, scanning and later changes. They also clarify which functions a proposed machine or software package actually includes.
Ask for a complete handover demonstration
- Scan the label on the actual item being handed over.
- Compare the displayed identity and revision with the agreed record.
- Follow a split, a reprint and a held item through the same workflow.
On this page
Check 1: define the unit for aluminum cutting barcode labels
Decide whether a label identifies an individual piece, a bundle, a container or another agreed unit. Put that meaning into the handover procedure. The operator and receiver need the same understanding when the code is scanned.
A container identity does not necessarily identify every member inside it separately. A bundle label can also become misleading if some pieces are removed while its contents record stays unchanged. Decide how the actual movement of material changes the recorded unit.
Keep the physical identity and the job information connected. Depending on the agreed process, the record may include the part number, drawing revision, material identity, quantity and destination. Select the fields that the receiving operation needs, rather than collecting information without a clear use.
GS1’s traceability explanation includes identification, labelling, data capture, records and information exchange. It also describes checking data quality between processes. That broader process is the reason to review the label together with its record and handover. This guide does not specify a GS1-compliant identifier or barcode design.
Check 2: connect the current record before printing
Confirm which approved source creates the label. It might be a controlled job record, a work order or another agreed system. Record how the label relates to the relevant part and drawing revision, and who resolves an identity mismatch.
Review what is encoded and what is retrieved after scanning. Some workflows use a code as a record key; others carry selected data within the code. Ask the supplier to show the actual arrangement, including the information available when the receiving operation scans it.
A visible revision on the label and the revision in the retrieved instruction need an agreed relationship. If a drawing changes, the workflow should make the affected labels and records visible for review. Use the cut-list revision guide to define that change before treating a previously printed label as current.
Do not infer program loading from label printing. Ask separately whether scanning only opens a record, records a movement or transfers information into a machine workflow. Any proposed transfer needs confirmation for the actual controller, software, file requirements and approved operating procedure.
Check 3: agree placement and handling
Choose the label location with the receiving operation. The label needs to remain associated with its intended unit and be accessible at the required scan point. Consider the actual profile shape, packaging, stacking and surfaces.

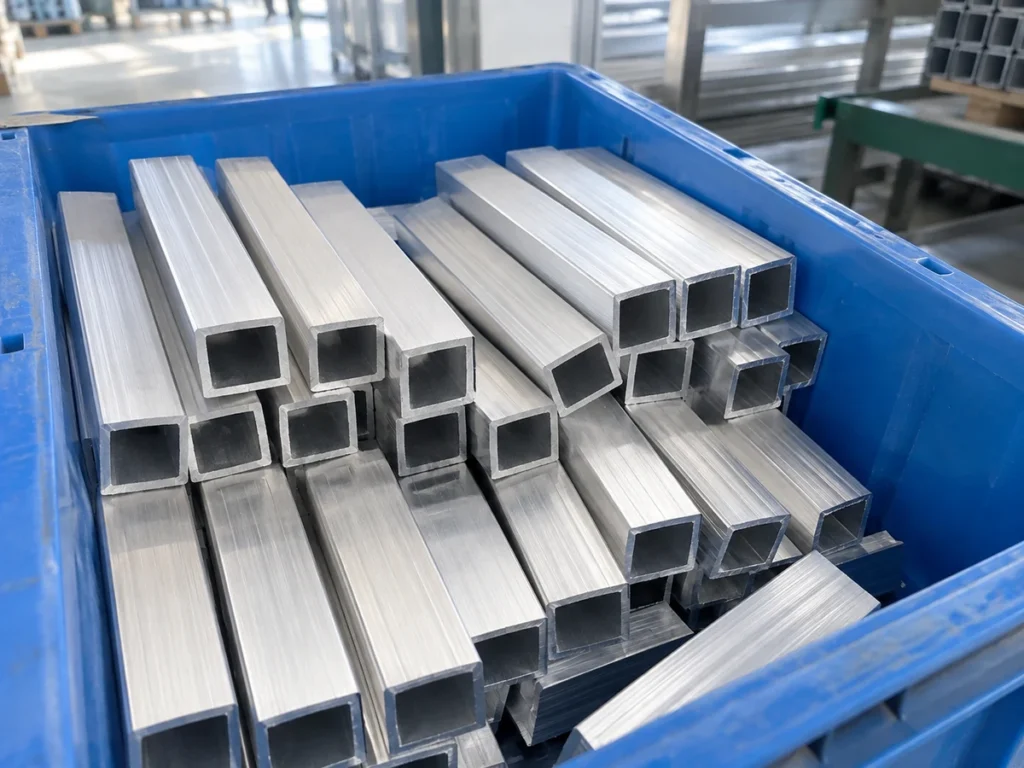

Review whether a label is applied to a part, attached to a container or placed on approved packaging. Each arrangement needs its own identity rule. A loose label beside several similar bundles can leave the receiver uncertain about which bundle it belongs to.
Use an approved labelling method for the material and finish. Ask the responsible team to review adhesive contact, residue, removal and any later process affected by the label. This article does not prescribe an adhesive, a permanent mark or a location on a customer-visible surface.
Include representative handling in the review. Check whether packing hides the code, a label is damaged or a container is changed. The visible-surface handling guide can help connect identification needs with the agreed protection of the cut parts.
Check 4: test the scan at the receiving operation
Use the intended reader and the actual receiving workflow for the demonstration. Scan representative labels where the material will be handed over. A code read from a clean sample on a desk does not establish the result after the agreed handling and packing.
First check which item was scanned. Then compare the decoded or retrieved identity with the physical unit and its agreed record. A successful read confirms that the system read something; the displayed information still needs to match the item in front of the receiver.
Test what happens when the label cannot be read or the record is unavailable. Define the approved fallback, the person who resolves the problem and how the item is kept identifiable during that review. Human-readable information can support that process when included in the agreed label design.
Keep scanning and acceptance decisions distinct in the procedure. If a system displays a release status, ask how that status is created and updated. Reading a part identity alone does not demonstrate that its dimensional inspection passed.
Check 5: follow splits, reprints and held material
Use a simple fictional example: a container recorded as 20 pieces is divided into groups of 8 and 12. The arithmetic accounts for all 20 pieces, but it does not create the identities of the two new groups. No actual production job or software feature is implied.
The original container label cannot automatically describe both groups after they travel separately. Follow the agreed process to identify each new unit and preserve its relationship to the original record. Confirm how the remaining quantities and destinations are represented.
Next, request a reprint in the demonstration. Check which record the new label uses and how the old label is dealt with under the site’s procedure. A replacement should not leave two conflicting identities attached to the same unit.
Finally, move an item into a held status in the test workflow. Check what the receiver sees and how a later authorized release is reflected. The batch-record guide covers the wider record chain; the label review tests whether that chain remains understandable at the physical handover.
A practical supplier demonstration
Write a short demonstration brief with the supplier before comparing automation claims. Use representative part identities and controlled sample records. Keep the expected result visible beside each step.
- Print: identify the approved source and the unit receiving the label.
- Hand over: scan the physical unit and compare its displayed record.
- Change: split a sample group and follow the resulting identities.
- Replace: reprint a label and check for conflicting old information.
- Review: show unreadable labels, unavailable records and held material.
List the printer, reader, software, configuration and integration work included in the quotation. Assign the owner of each connection and any ongoing support. A general statement such as “barcode ready” does not explain the supplied workflow.
For a JiurunCut machine inquiry, share the actual profile drawing and cutting requirements, together with the identification and receiving steps you want reviewed. Ask which functions are included and which need separate equipment or integration. No barcode printing, scanning or software connection is assumed for a particular model here.
Buyer questions about barcode labels
Does a readable code prove the cut part is correct?
No. Confirm the identity it represents and the applicable inspection and release records. Readability alone does not establish dimensions, material conformity or acceptance.
Should every cut piece have its own label?
Define the identification unit for the actual job and handover. Individual pieces, bundles and containers need different record relationships. Agree that choice with the receiving operation.
Can scanning a label automatically run a cutting program?
Only treat that function as supplied after the specific controller, software and operating workflow have been confirmed. Label printing or record lookup does not establish automatic program transfer.
