Curtain Wall Aluminum Cutting Solutions for Mullions, Transoms & Multi-Angle Joints

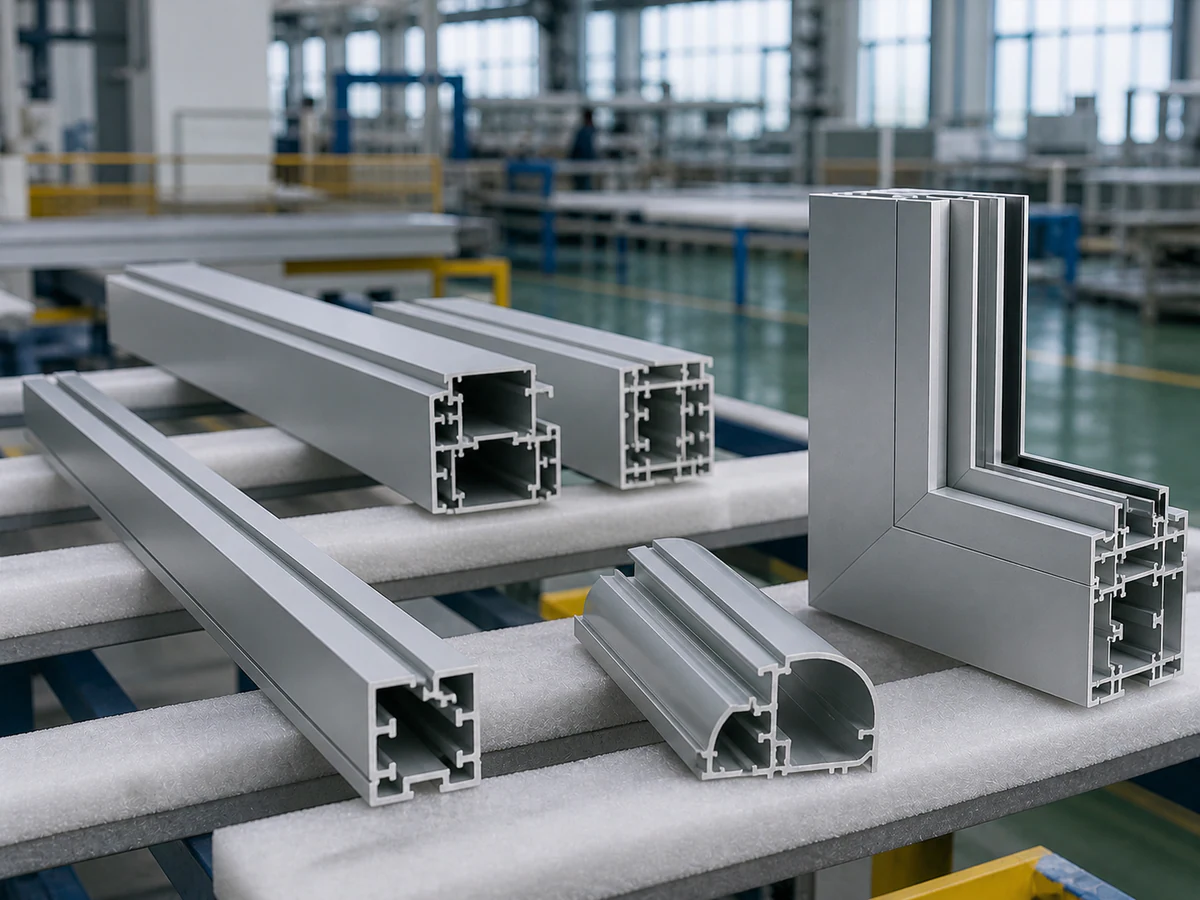

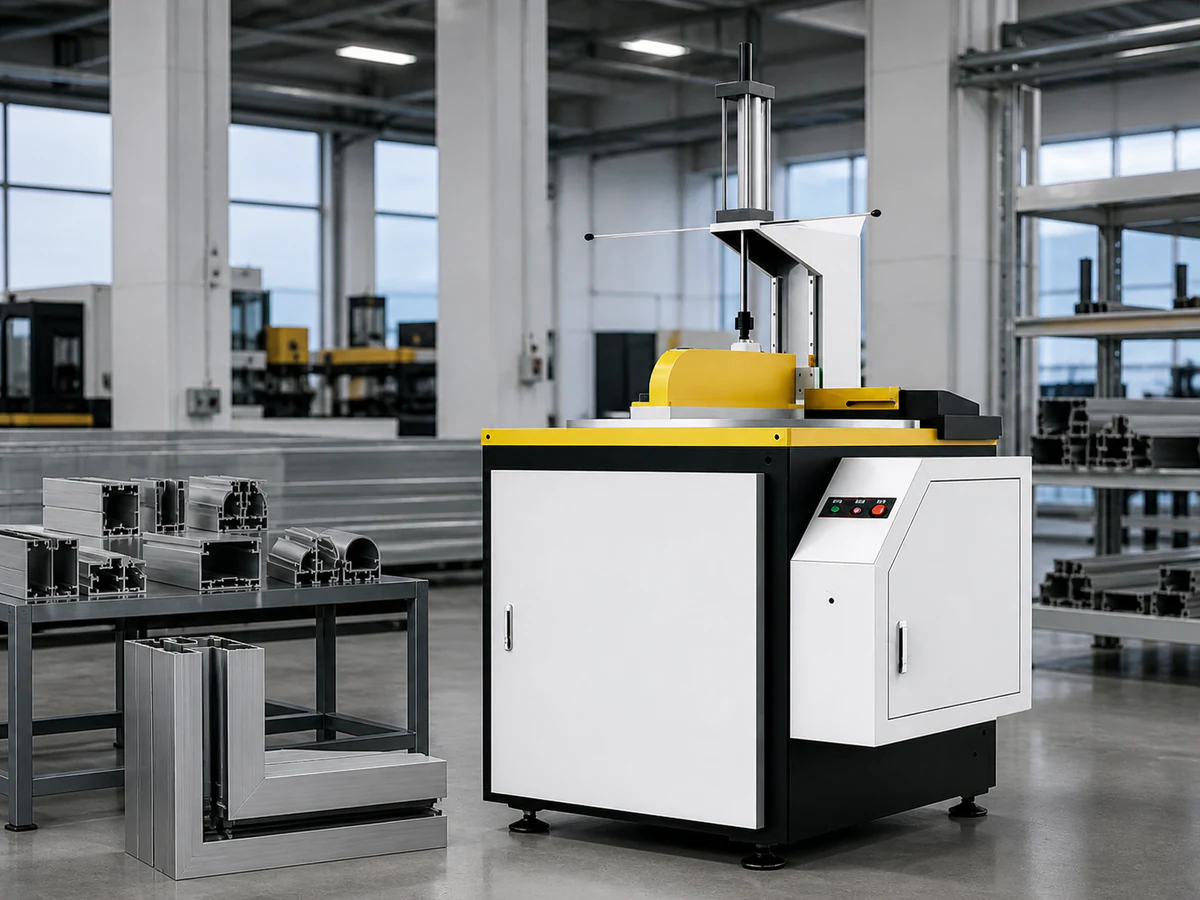

The customer first identifies every appearance-critical face, protective film and acceptable contact area on the drawing or sample. JiurunCut then plans guides, supports, clamps, transfer surfaces and finished-part collection around that finish. Surface protection is not judged only at the cutting point because marks can occur during loading, feeding or discharge. Representative profiles with the real anodized or coated condition are run through the complete cycle and inspected under an agreed method. Any film, pad or separator requirement is included in the project scope before final fixture approval.

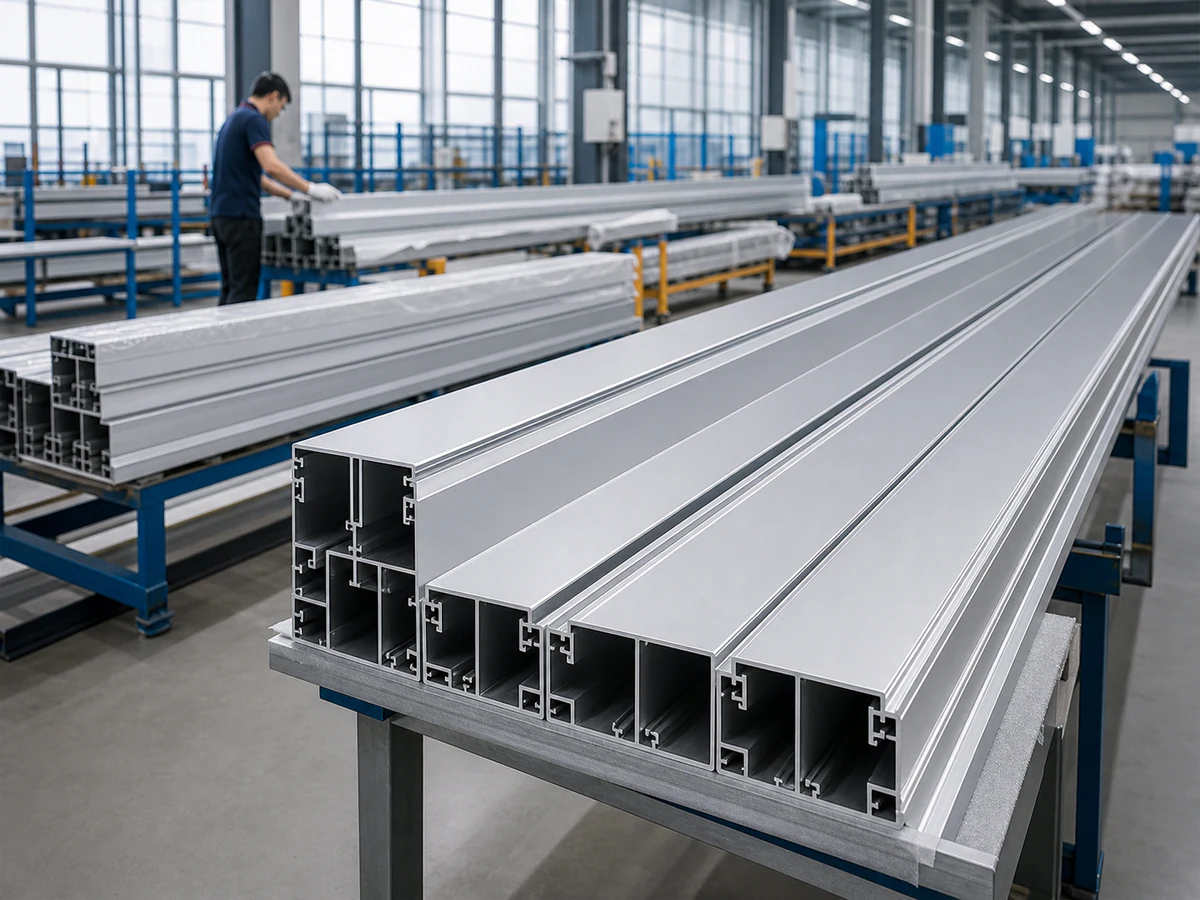

Yes, but the support plan must follow the real stock length, section stiffness, weight, datum and available factory space. Infeed and outfeed support should keep the mullion stable without forcing it away from the agreed positioning surface. JiurunCut reviews where the profile can safely rest, how it moves through the machine and how the finished part is received. Representative cutting checks whether sag, twist or friction affects length, cut face or visible surfaces. Support equipment is confirmed as part of the configuration rather than treated as an afterthought.

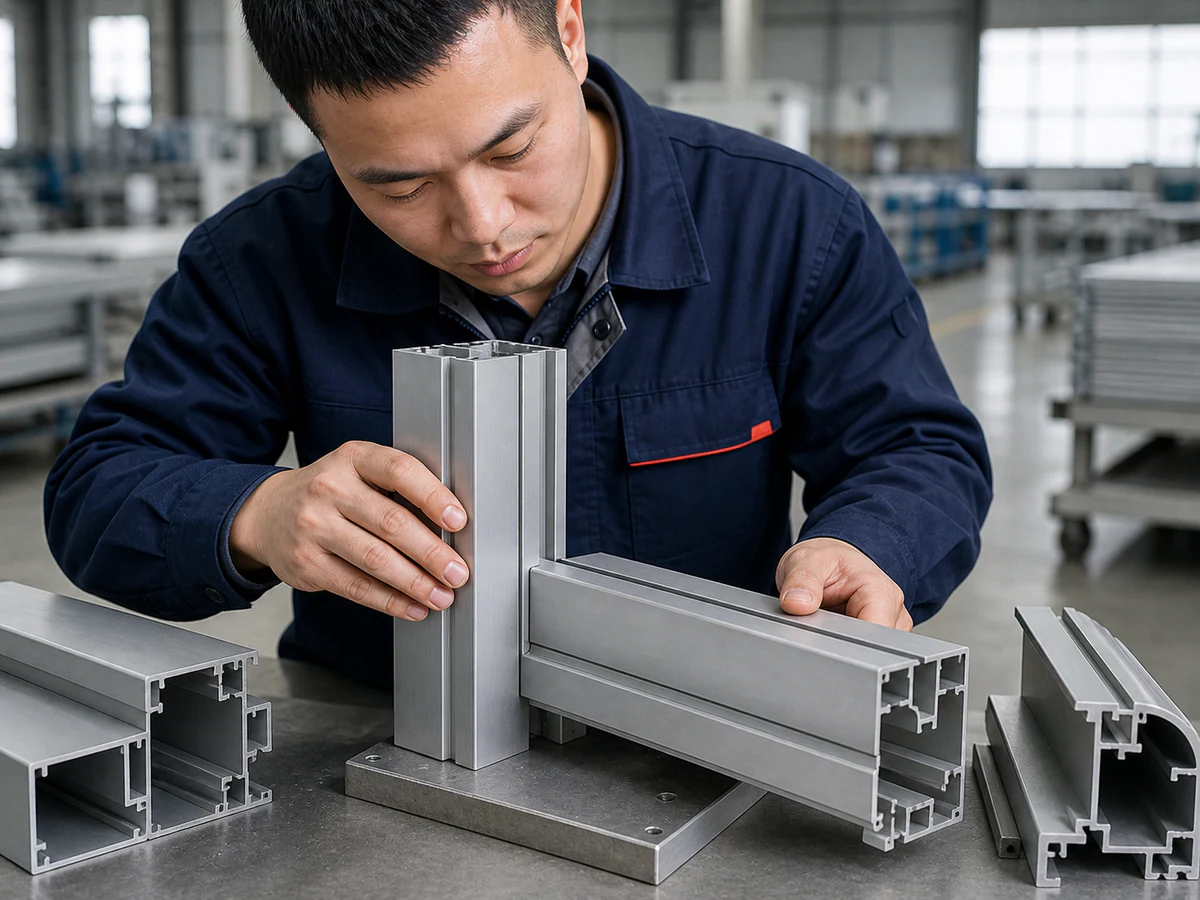

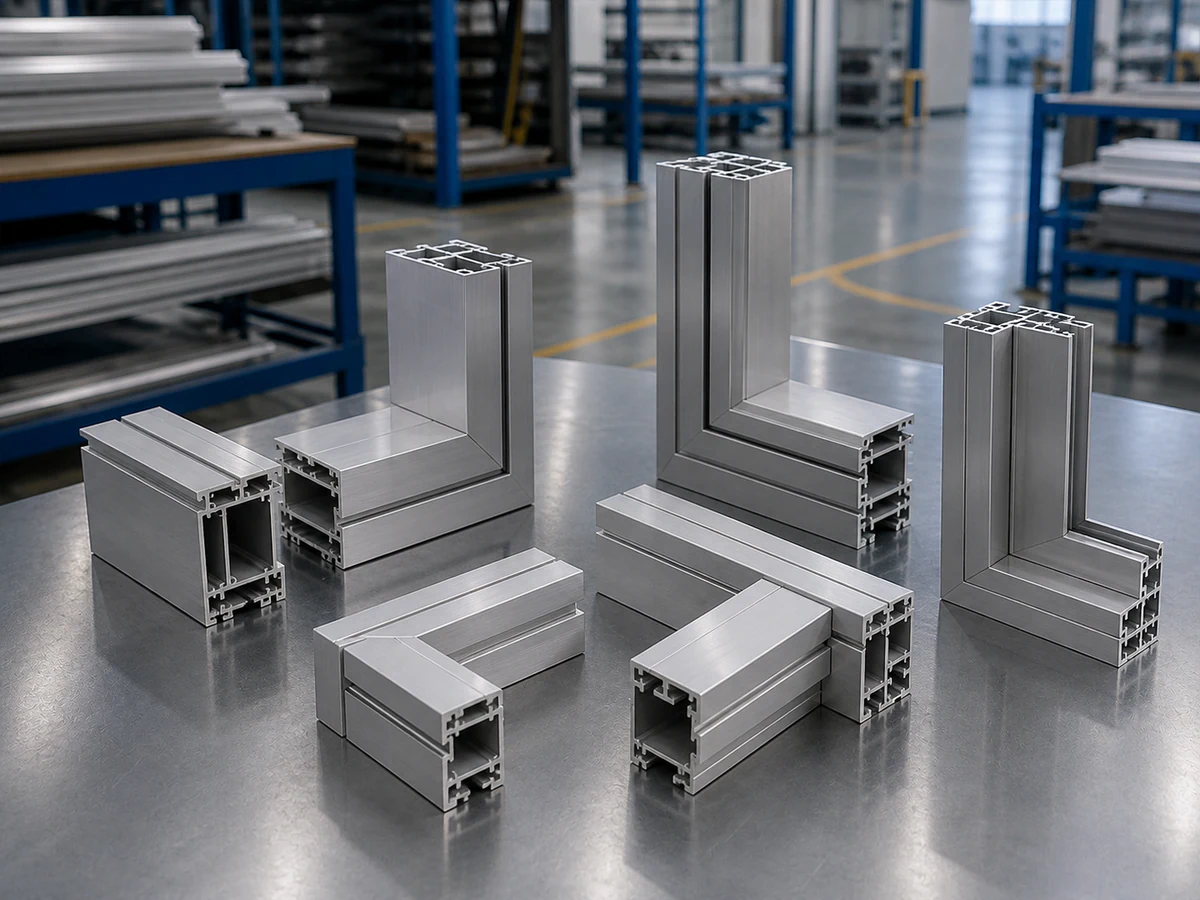

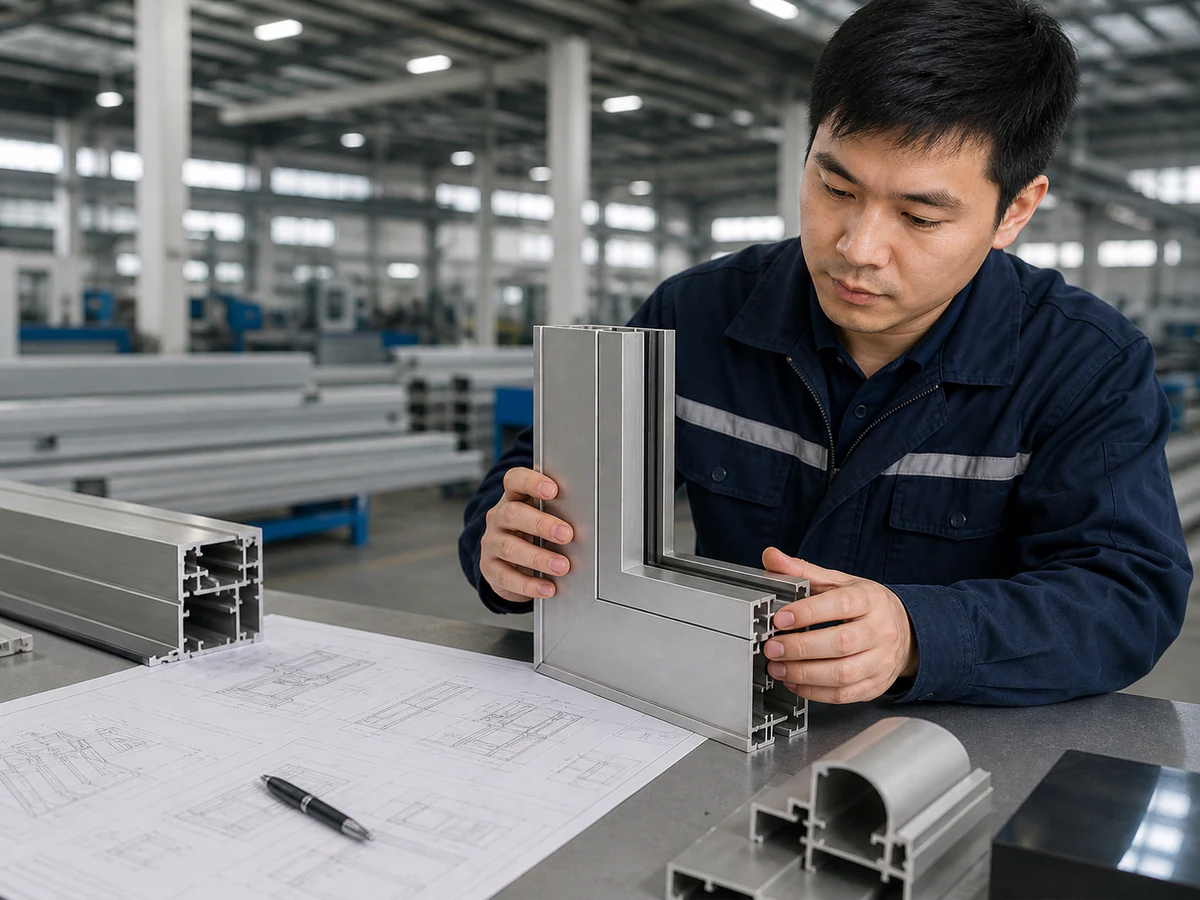

A multi-angle CNC direction may handle recurring programmed angles, but suitability depends on the profile, joint datum, angle range, sequence and frequency of change. The complete joint drawing is needed because a correct nominal angle can still fail if the wrong face is used as the reference. JiurunCut reviews the angle list and representative profiles before confirming the JR-550CNC-CORNER direction. Sample parts are checked individually and, where practical, assembled with the mating mullion or transom to verify the real finished geometry.

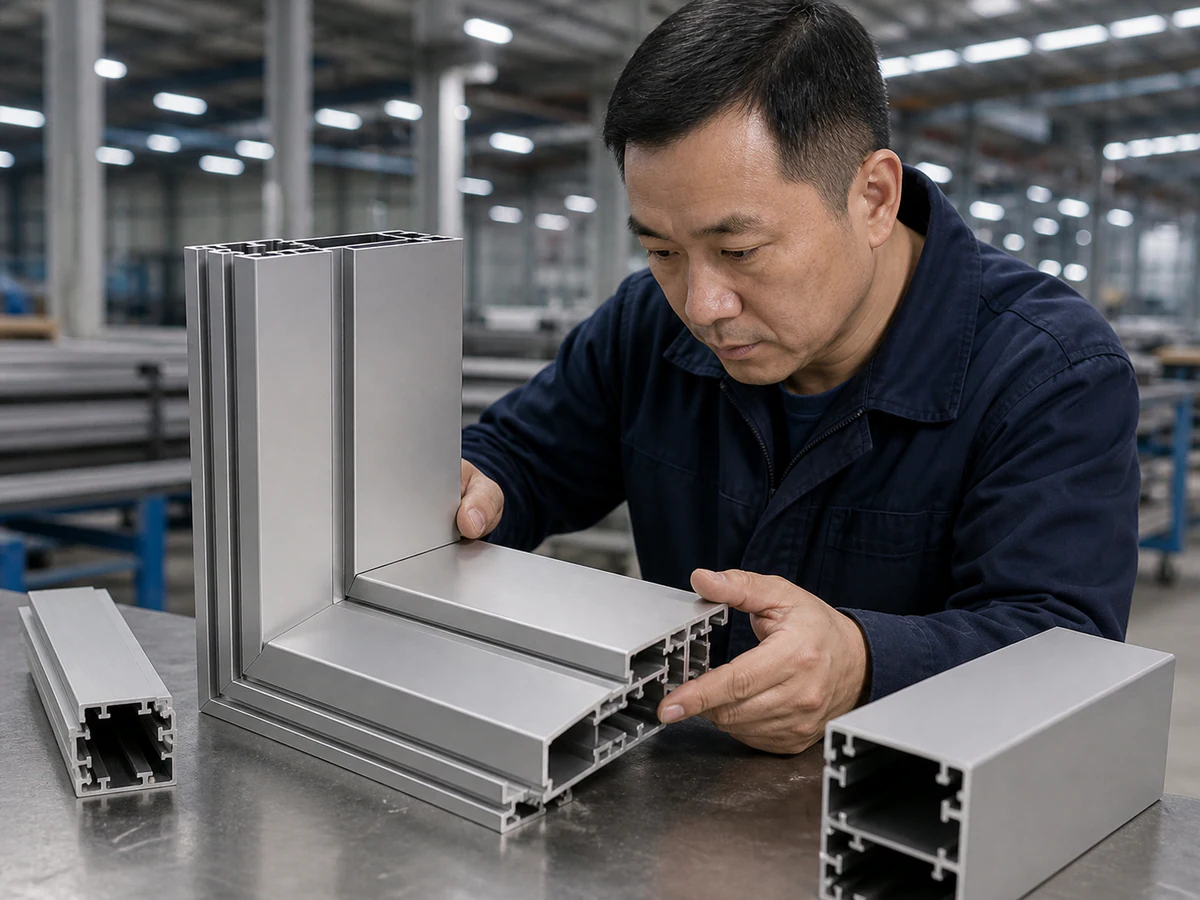

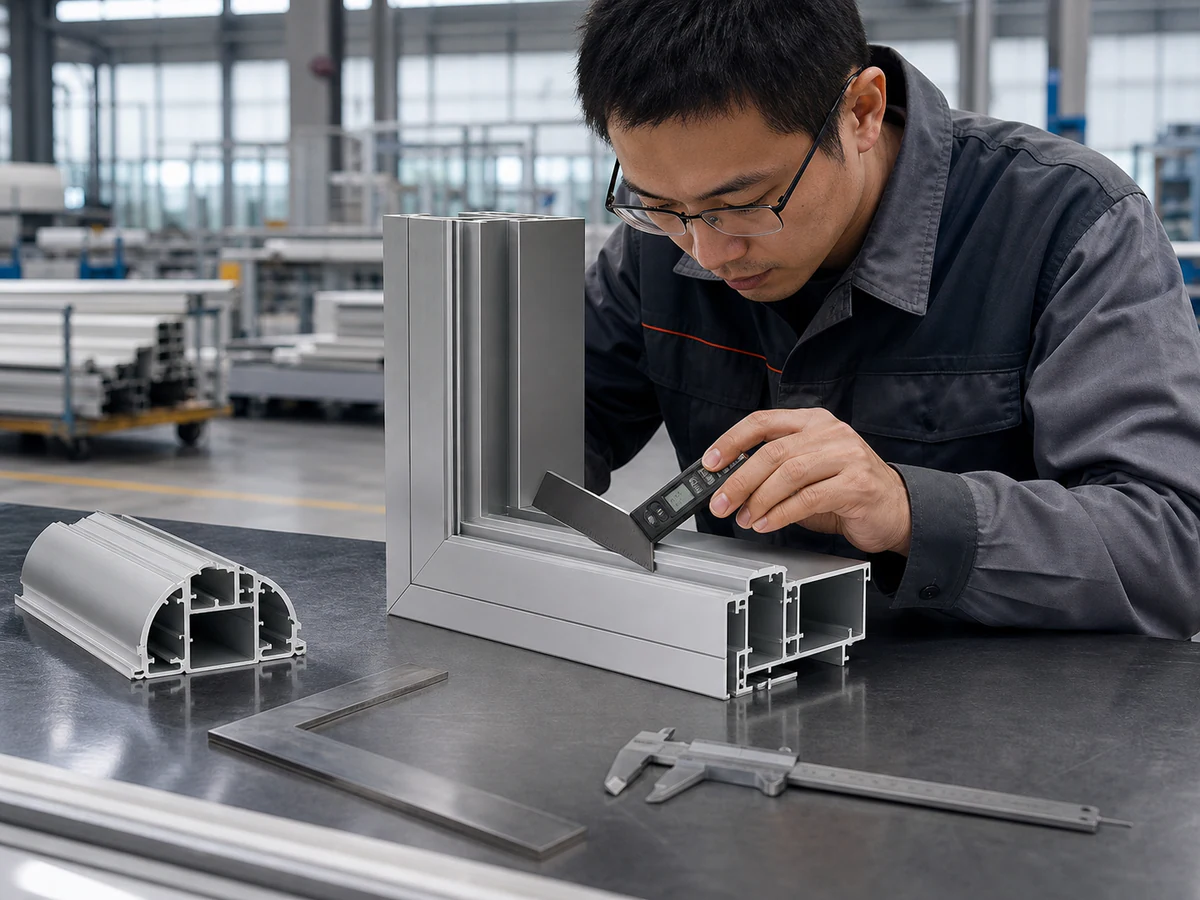

The agreed datum, finished length, angle and mating surfaces are marked on the joint drawing before testing. JiurunCut cuts representative mullion and transom components, measures them using the agreed method and then checks the connection in a sample fixture or real assembly condition where possible. The review looks for gaps, misalignment, surface damage and repeatability across more than one part. Joint fit is not inferred only from the machine display or a single angle measurement; it is confirmed from the finished components and the downstream assembly relationship.

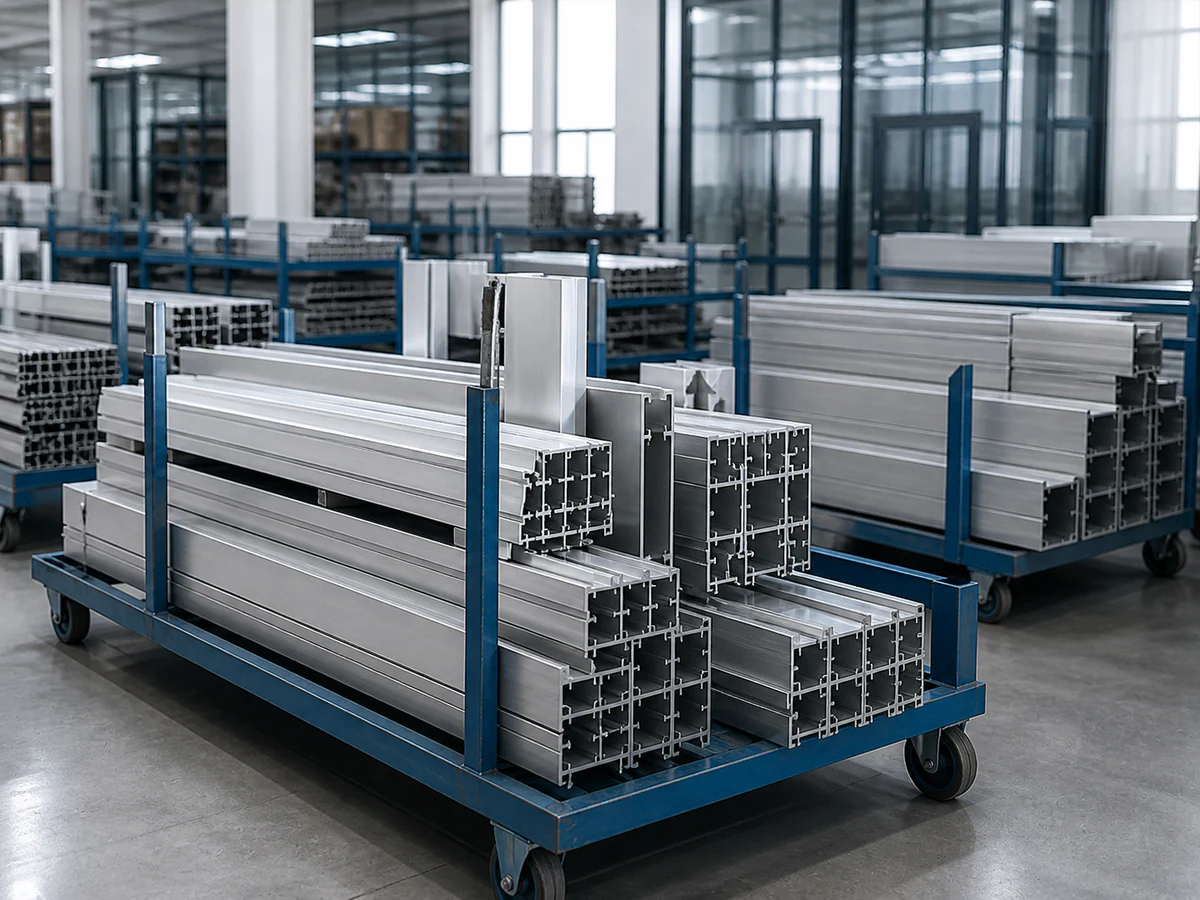

The list is grouped by profile family, finish, straight or angled program, fixture condition, quantity and delivery batch. This separates a software program change from a physical profile or clamp change and reduces the risk of producing a correct length with the wrong setup. JiurunCut reviews stock length, part identification and recurring groups before proposing the workflow. Representative acceptance includes an important mixed sequence so program recall, profile support, angle changes and part identification can be checked under conditions closer to real curtain wall project production.

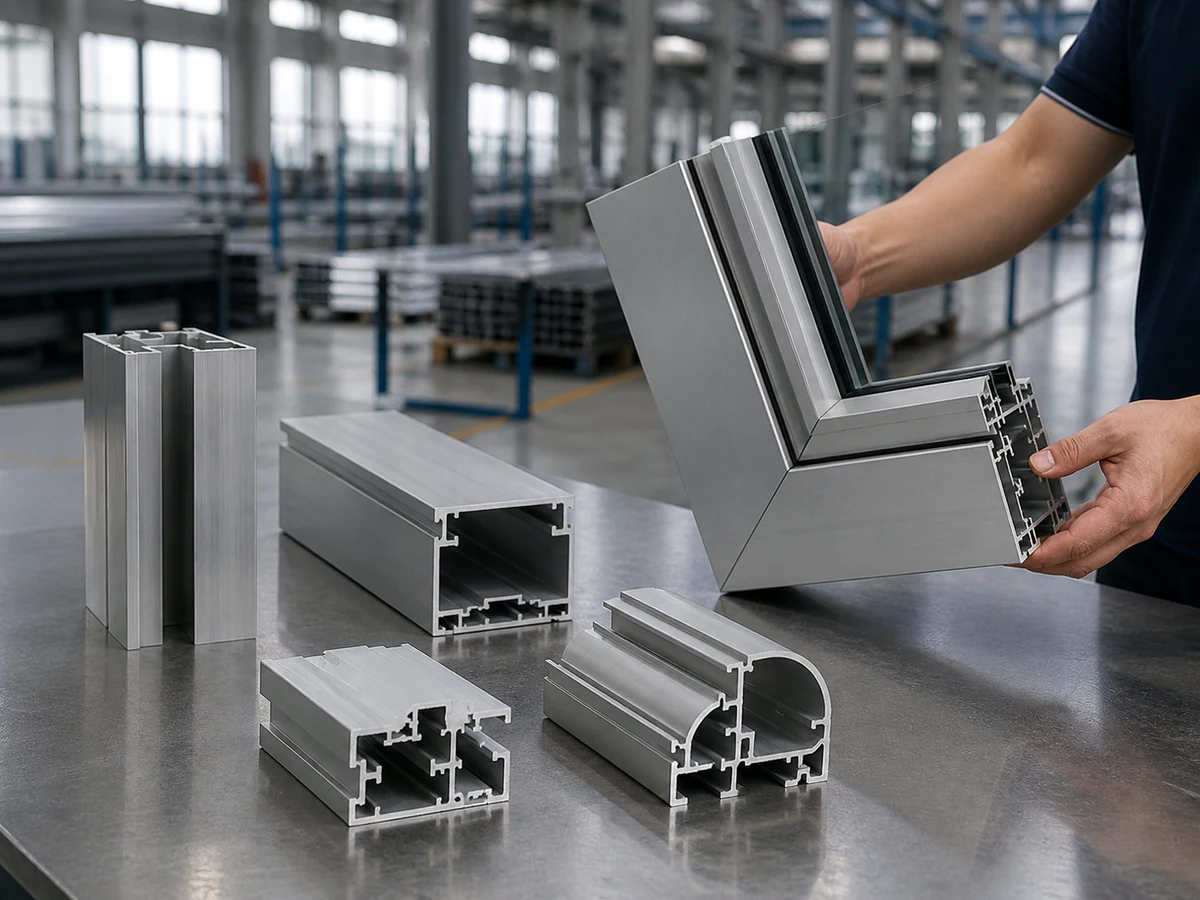

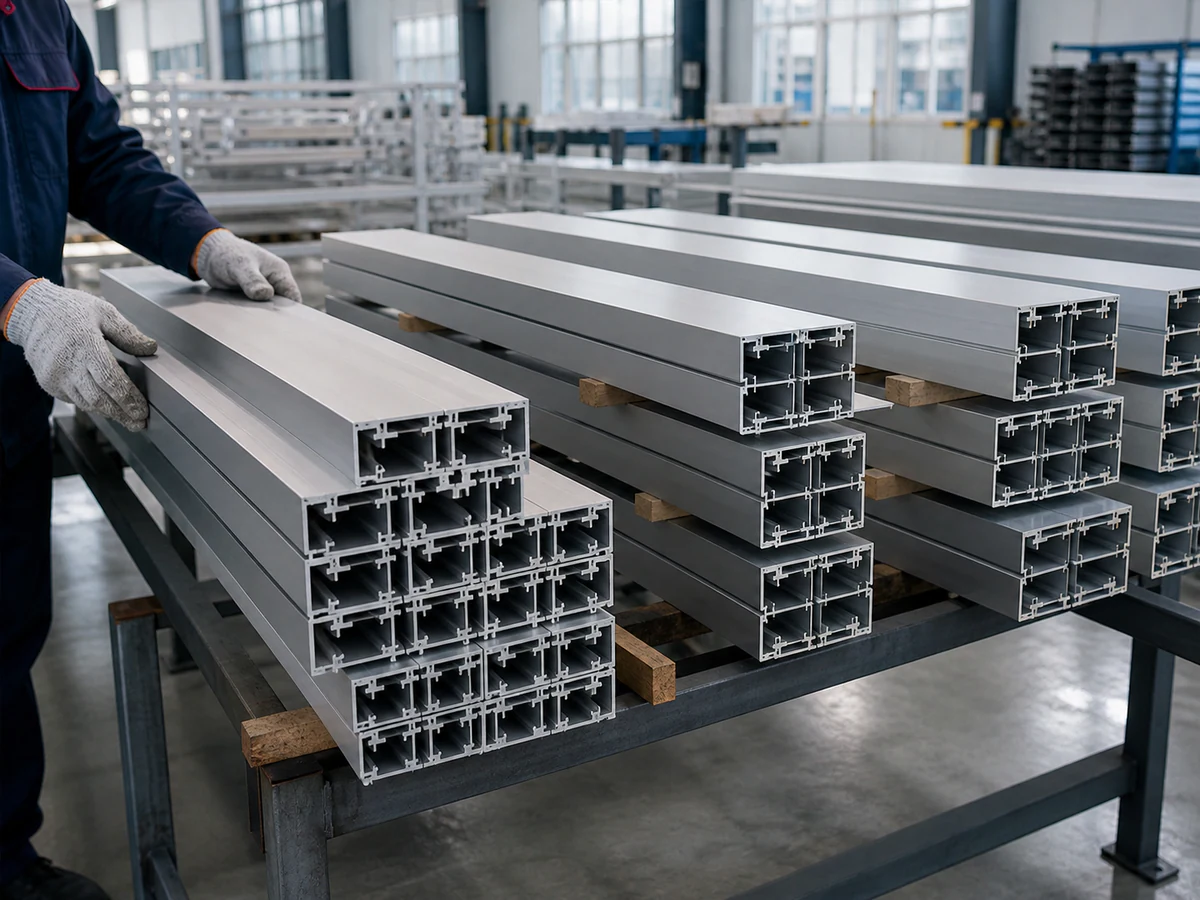

Possibly, when the sections share compatible support and clamping zones, but it should not be assumed from overall dimensions. Mullions and transoms may use different cavities, visible faces, reinforcement and assembly datums. JiurunCut compares the real cross-sections and identifies which contacts can be shared, adjusted or replaced. The practical changeover time and risk of selecting the wrong fixture state are also reviewed. Representative samples from each family must be cut and inspected before a shared-fixture direction is accepted. The approved setup should also be clearly identified for the operator during project production.

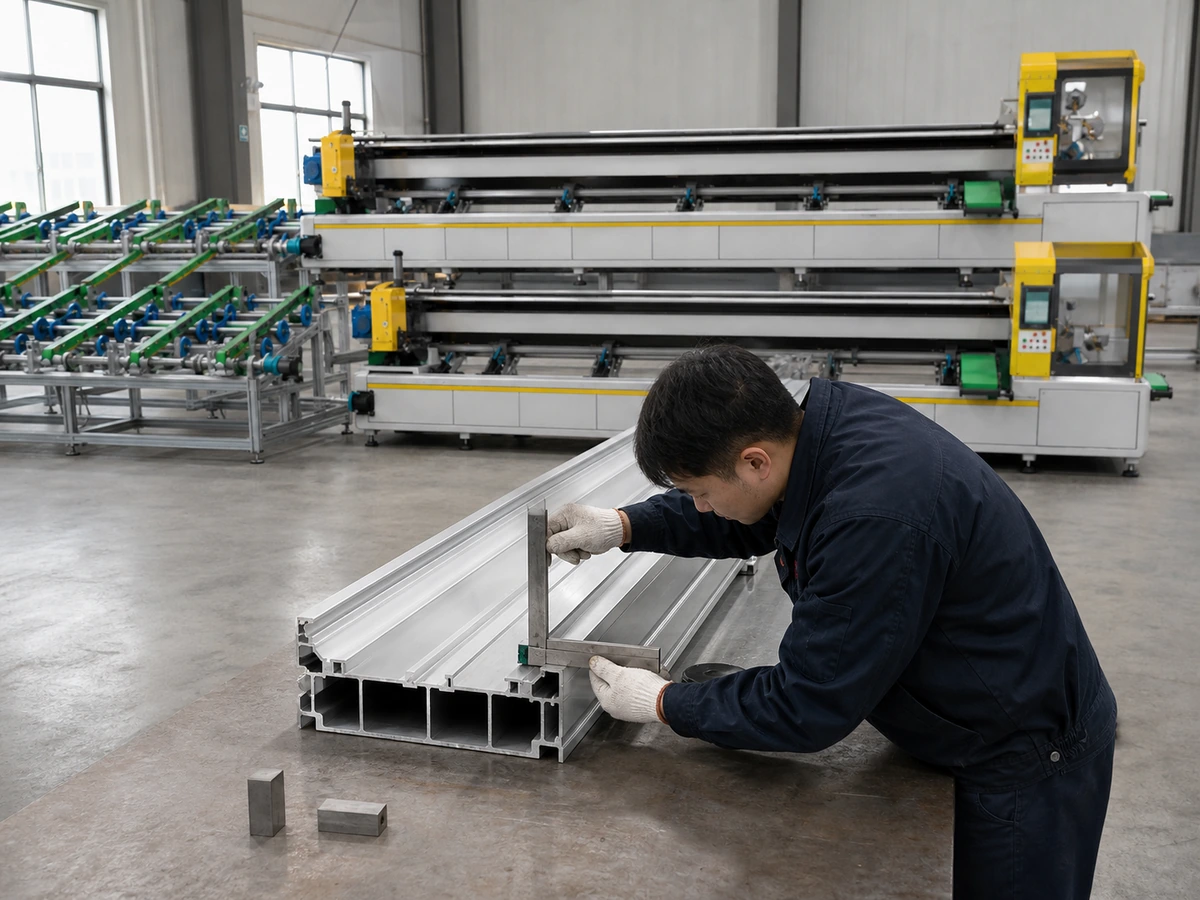

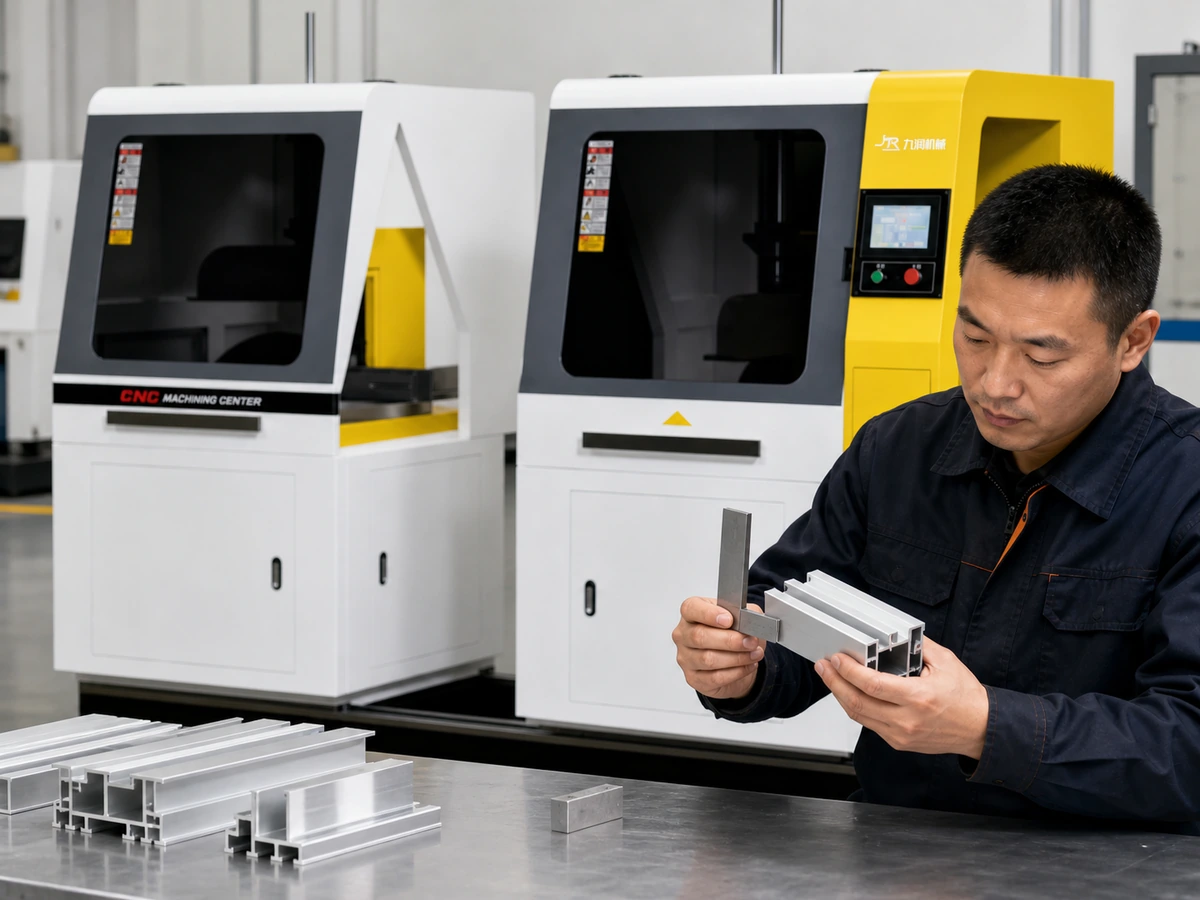

The test should use the real or representative finish and include important straight cuts, repeated lengths and the most critical angle joints. JiurunCut and the customer agree the inspection datum, cut-face expectations, surface acceptance and joint-fit method before testing. Several consecutive parts are compared to review repeatability. Where mating profiles are available, a representative assembly is preferred because it reveals datum or angle-sequence problems that may not appear during isolated measurement. Results are documented against the agreed project requirement. The approved samples and inspection notes then become the reference for factory acceptance.

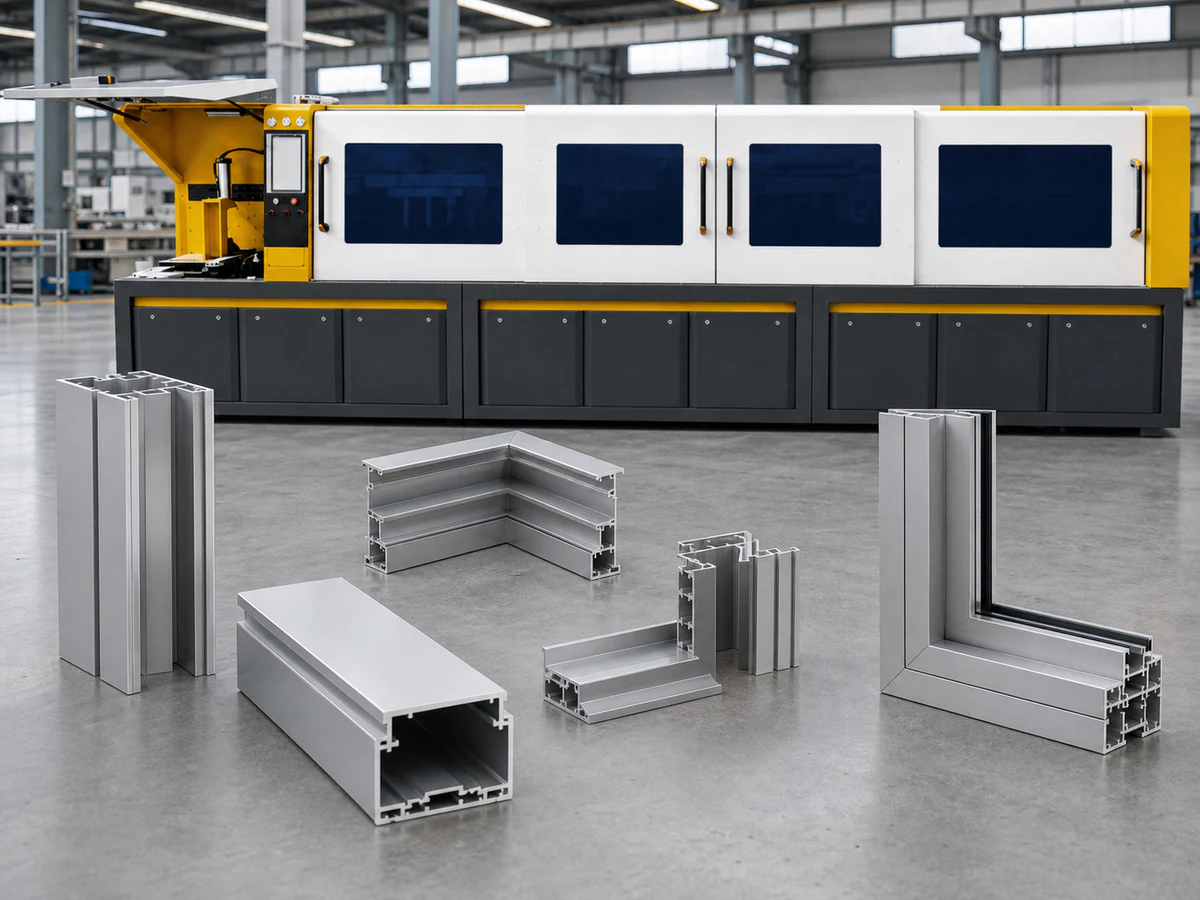

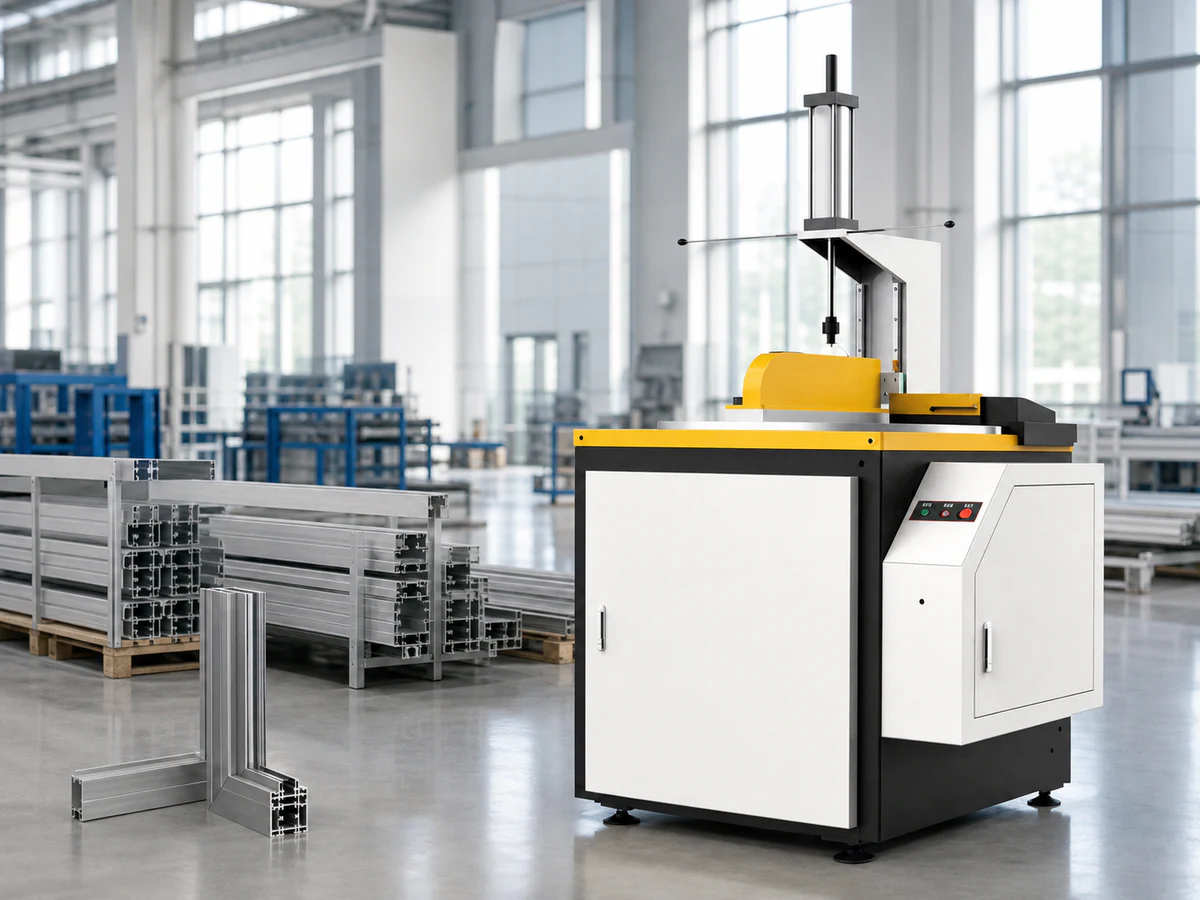

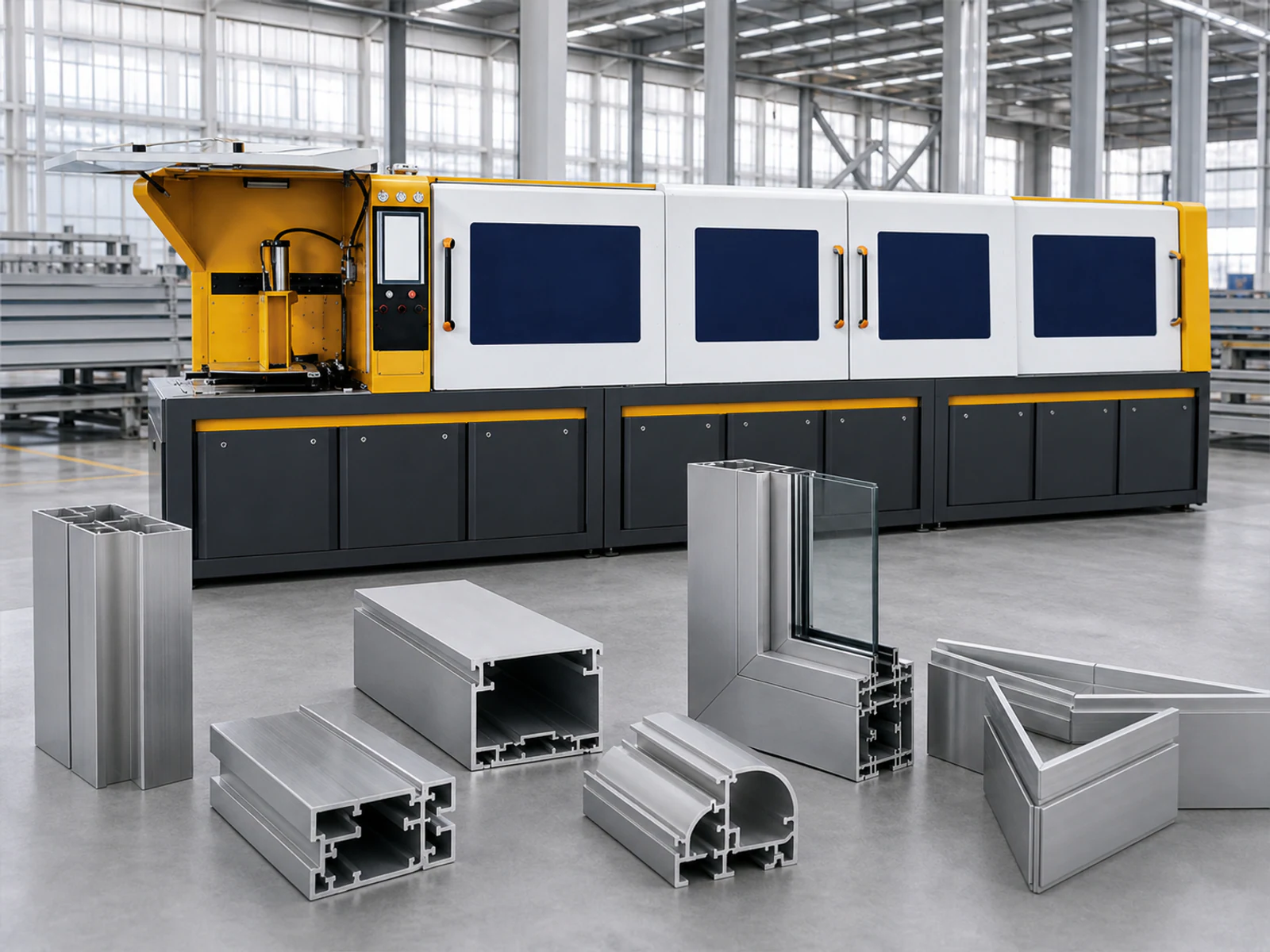

JR-550Q may be a starting direction for recurring straight cutting where long-profile support and protected handling are central. JR-550CNC-CORNER may be considered when the curtain wall part family requires recurring programmed angles and verified joint geometry. Neither model is selected from the industry name alone. Final direction depends on profile size, finish, stock length, angle list, datum, quantities and project workflow, and it remains subject to representative sample cutting and assembly verification. The agreed sample and joint-fit results become the reference for final factory acceptance.
