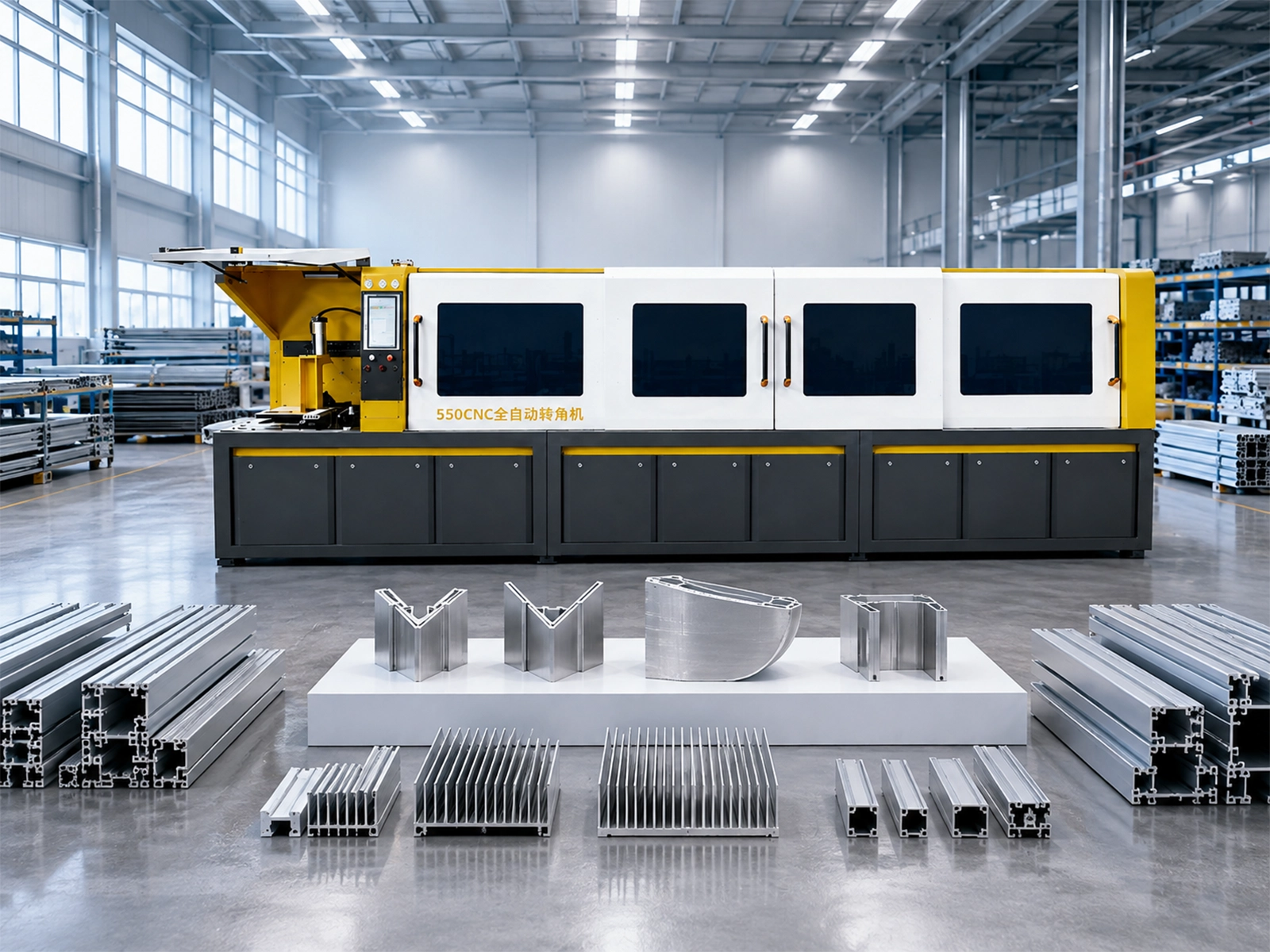

APPLICATION-DRIVEN ALUMINUM SAWING
Aluminum Cutting Solutions for Industrial Applications
Built Around Your Profile, Finished Part and Production Requirement
From EV structural profiles and energy-storage enclosures to heat sinks, rail-transit components and industrial extrusions, JiurunCut develops the cutting process around the real profile section, finished part, tolerance, visible surface and production target.
Send the drawing and production requirement to receive a recommended machine direction, clamping concept and sample-cutting plan.
FIND YOUR SOLUTION
Start with Your Industry or Production Problem
Choose the closest application or production challenge. JiurunCut will review the profile, cutting list, tolerance, output and downstream assembly requirement.
INDUSTRY SOLUTIONS
Aluminum Cutting Solutions for High-Value Industrial Applications
Select the application closest to your aluminum part. Each solution considers profile geometry, clamping, visible surfaces, cutting length, angle, output and downstream assembly.

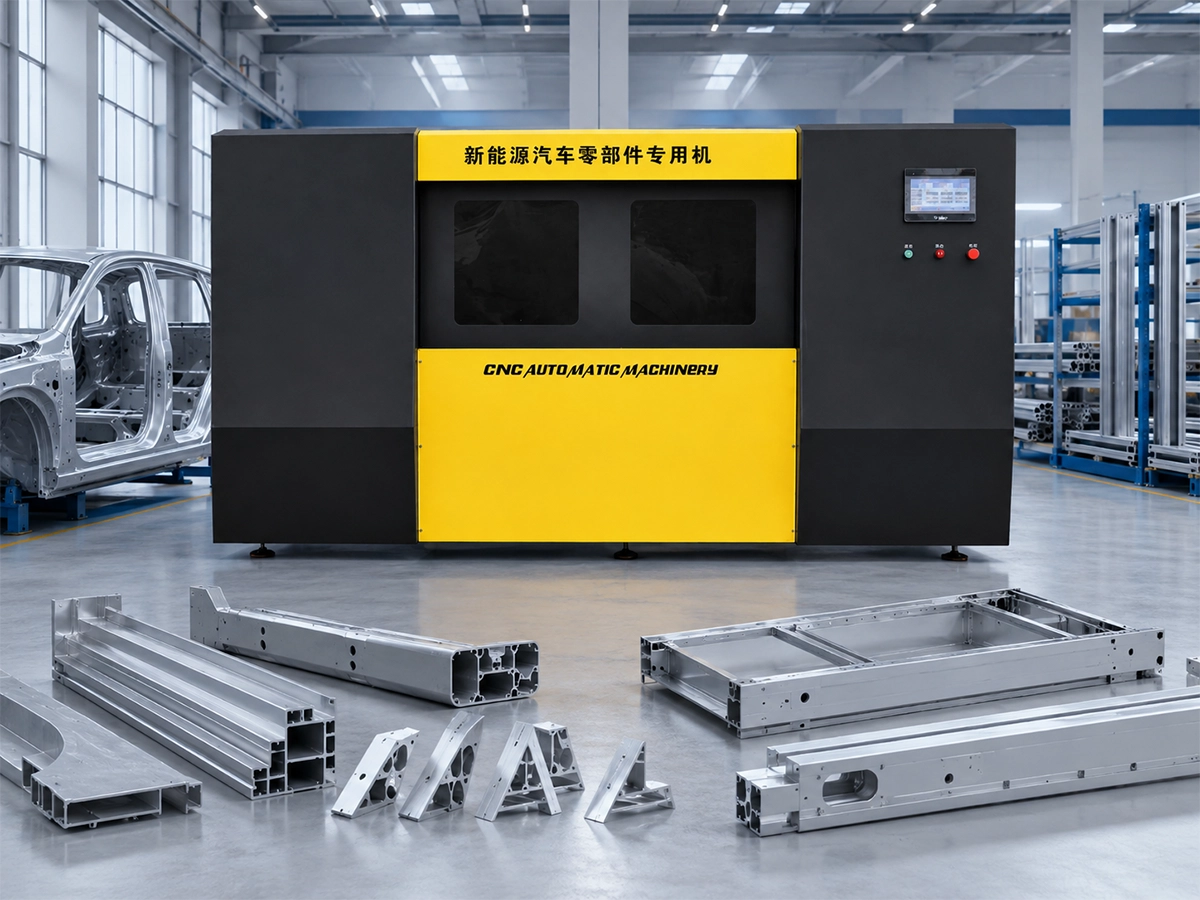

New Energy Vehicle Aluminum Parts
Battery tray side rails, crash beams, threshold beams and multi-cavity structural profiles requiring stable length, angle and assembly repeatability.
Machine direction: JR-505CNC / JR-550CNC-CORNER

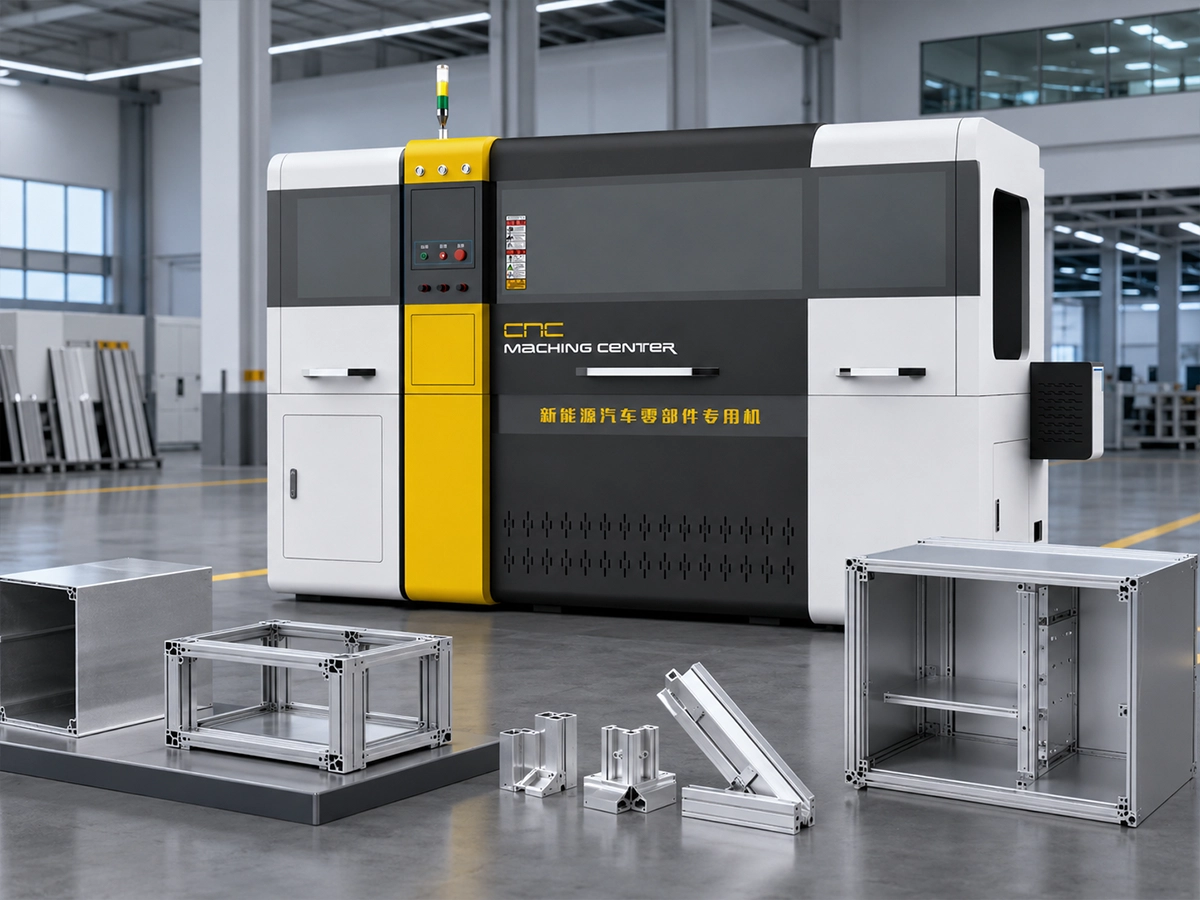

Energy Storage Aluminum Profiles
Battery enclosure profiles, cabinet rails, PACK frames and structural aluminum parts with multiple specifications and assembly-fit requirements.
Machine direction: JR-650CNC-3A-1S / JR-510CNC-3A-1S

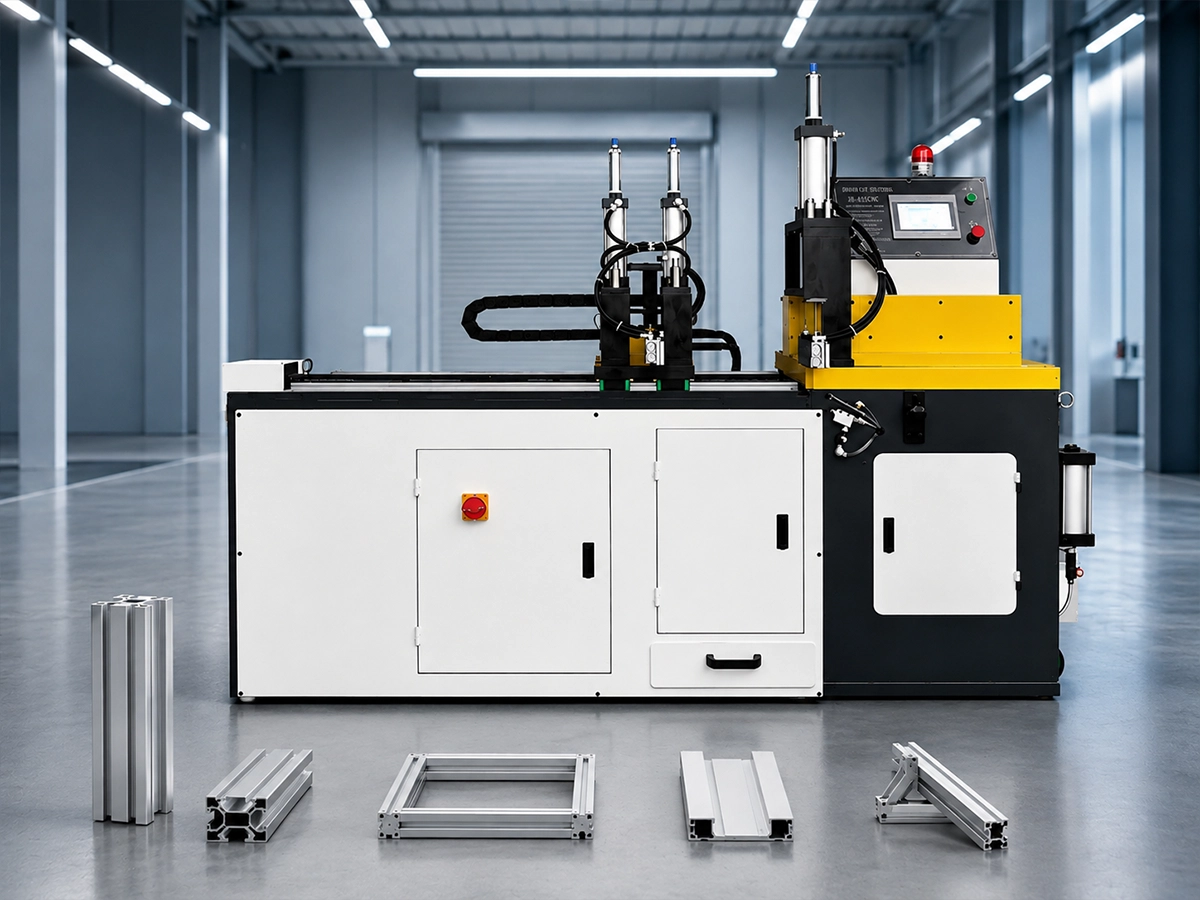

Industrial Aluminum Profiles
Solid, hollow, multi-cavity and irregular industrial extrusions for repeated batch cutting and changing production orders.
Machine direction: JR-650CNC-3A-1S / JR-455CNC

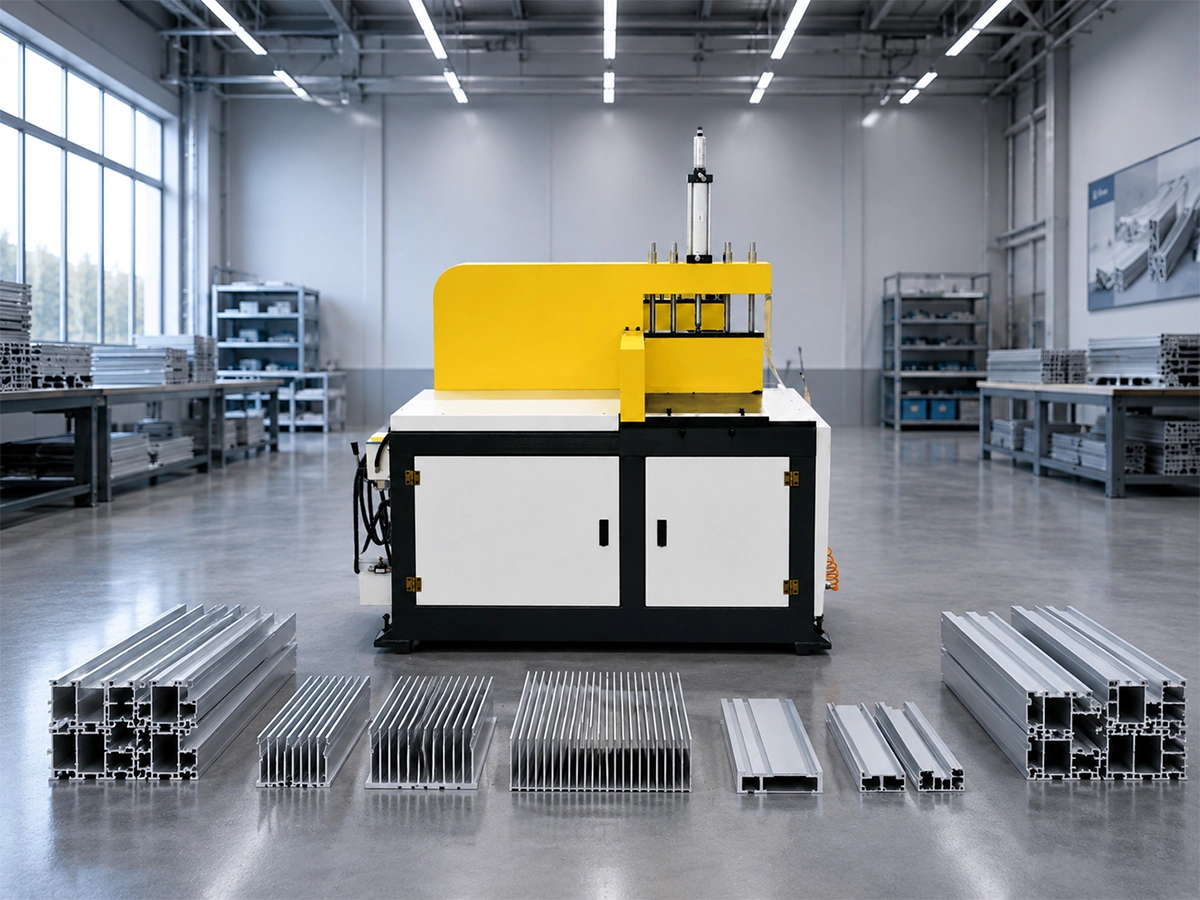

Heat Sink Profiles
Thin-fin heat sinks, asymmetric cooling profiles and precision thermal extrusions requiring profile support and deformation control.
Machine direction: JR-455Q / JR-455Y

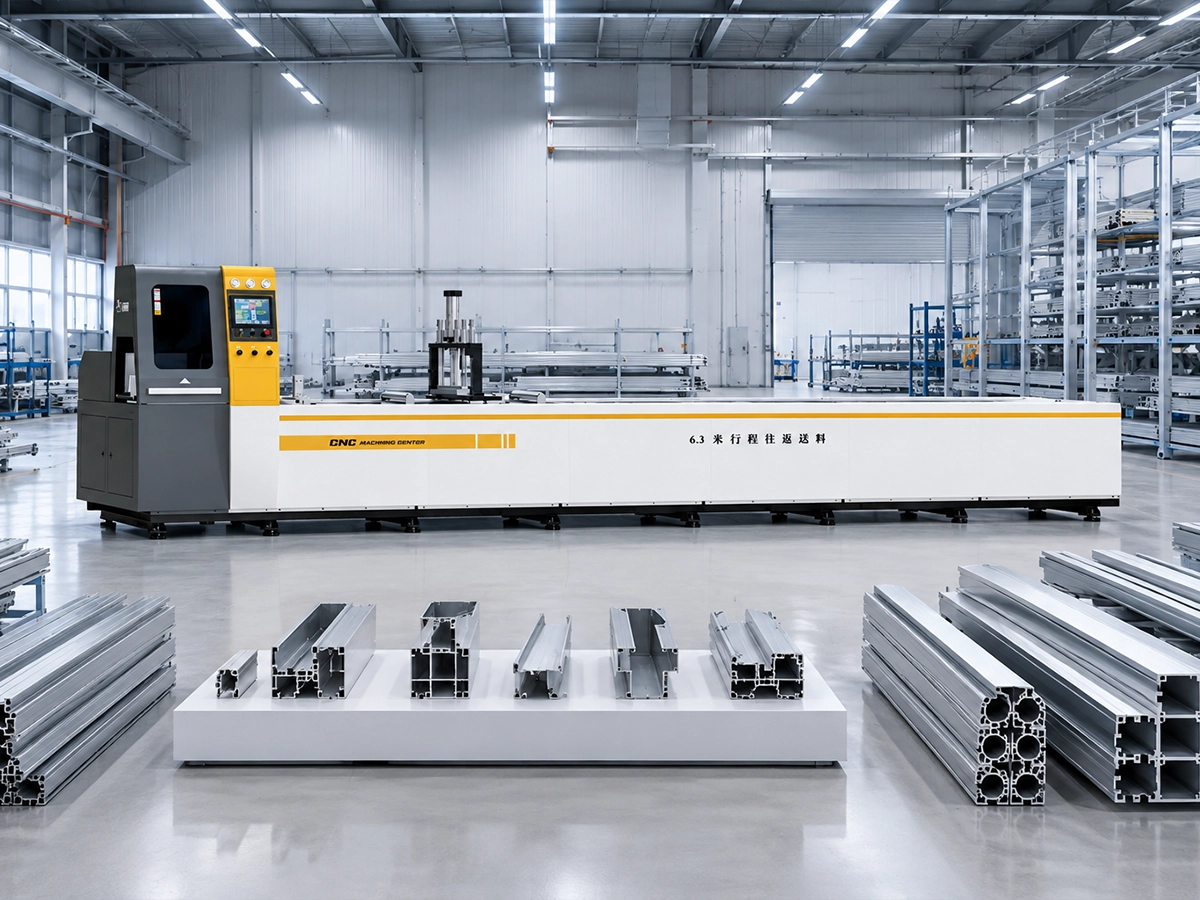

Rail Transit Aluminum Components
Large reinforced structural extrusions and long aluminum components requiring stable support, clean cutting and repeatable batch quality.
Machine direction: JR-650CNC-3A-1S
Curtain Wall Aluminum Profiles
Mullions, transoms, structural joints and visible aluminum profiles requiring surface protection, angle accuracy and reliable assembly fit.
Machine direction: JR-550CNC-CORNER / JR-550Q
OTHER APPLICATIONS
Other Aluminum Applications We Can Evaluate
Do not see your exact application? Send the profile drawing, finished length, cutting angle, tolerance and daily output. JiurunCut will review whether an existing machine platform can be configured for the part.
PRODUCTION CHALLENGES
Choose a Cutting Solution by Production Challenge
Start with the production problem that affects material cost, quality, output or delivery, then compare the relevant machine and process direction.
Reduce Tail Waste
Evaluate stock length, nesting, cutting sequence and realistic remaining tail material.
Cut Multiple Angles
Configure repeatable angle cutting for structural joints, frames and assembly components.
Protect Thin-Wall Profiles
Match support and clamping to fins, ribs and multi-cavity sections.
Automate Batch Cutting
Combine feeding, positioning, cutting and collection for repeated industrial orders.
Protect Visible Surfaces
Plan guides, clamps and collection around anodized, coated and appearance-critical surfaces.
Handle Mixed-Length Orders
Organize recipes, fixtures and cutting lists around changing profile families and quantities.
ENGINEERING PROCESS
From Profile Drawing to a Verified Cutting Process
Send the Profile and Finished-Part Drawing
Share the cross-section, finished geometry and any representative sample.
Confirm Production Requirements
Define stock length, cutting list, angle, tolerance, finish and target output.
Select Machine and Fixture Direction
Match feeding, support, clamping and collection to the real profile family.
Verify with Sample Cutting
Review the cut face, dimensions, angle and downstream assembly fit.
MACHINE DIRECTIONS
Typical Machine Directions for Different Cutting Requirements
These are machine-platform directions, not final specifications. Final configuration depends on the actual profile drawing, cutting list and production requirements.
Multi-Angle & Complex Parts
For structural joints, automotive parts and finished components requiring repeatable angle control.
- Multiple cutting angles
- Complex profile geometry
- Frequent angle changes
Automatic Batch Cutting
For repeated industrial orders requiring integrated feeding, positioning, cutting and collection.
- Batch production
- Repeated cutting lists
- Reduced manual handling
CNC Flexible Cutting
For changing profiles and cutting lists where programmable positioning and recipe control are valuable.
- Multiple finished lengths
- Changing production orders
- Programmable positioning
Semi-Automatic Cutting
For varied profile families, sample work, smaller batches and practical semi-automatic operation.
- Sample cutting
- Smaller batches
- Flexible production
VERIFICATION EVIDENCE
Verify the Machine, Profile and Finished Cut
Machine selection should be supported by the real profile, finished part and inspection requirement—not by a generic catalog specification alone.

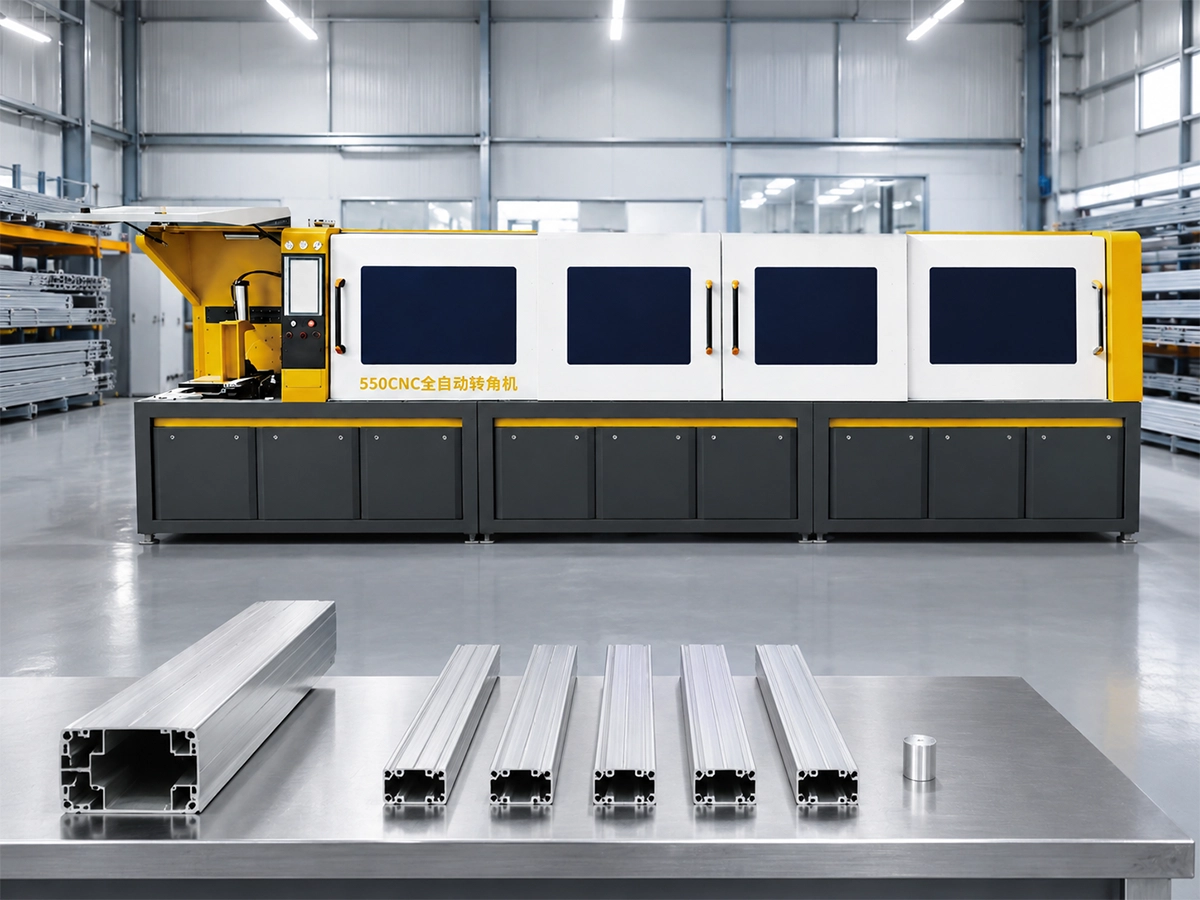

Material Saving / Short Tail
Evaluate remaining tail from the confirmed cutting list and production batch.

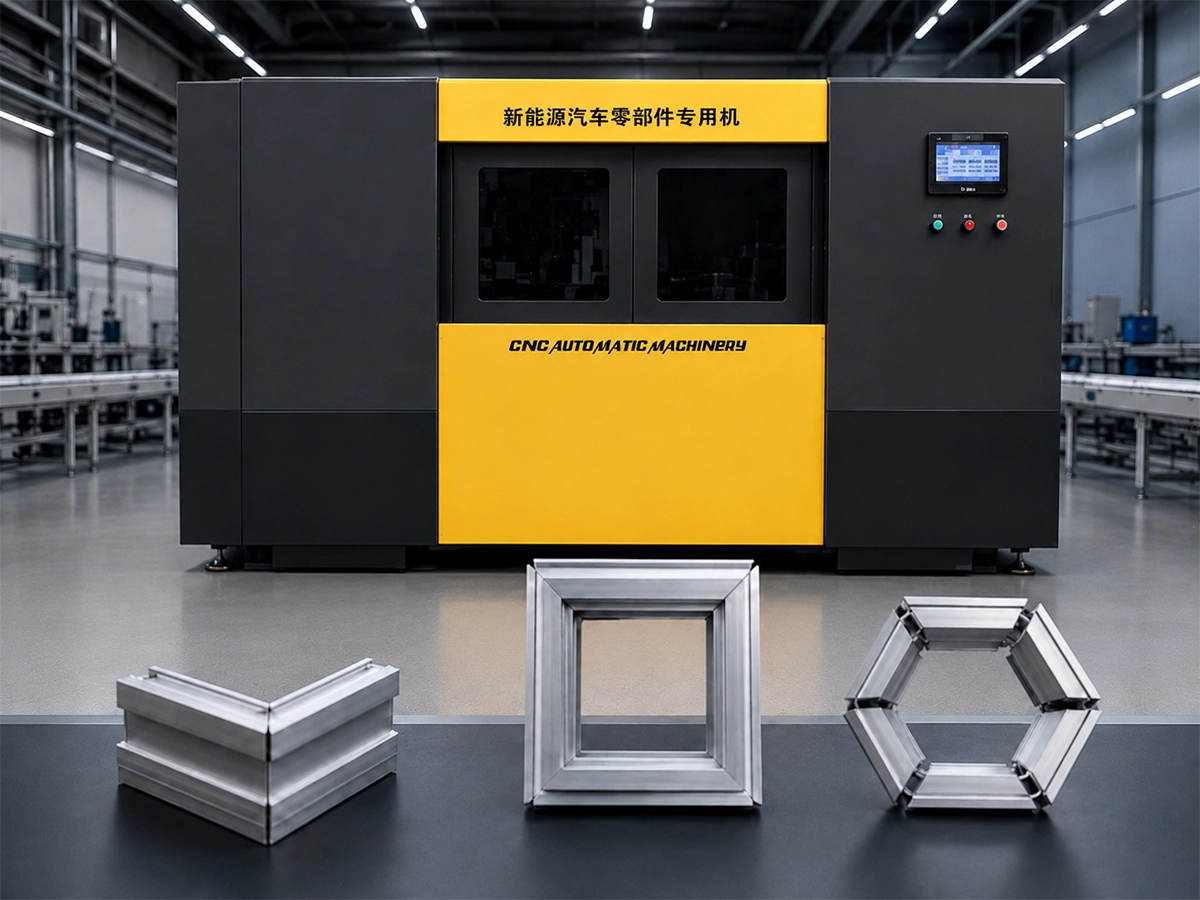

Multi-Angle Cut Samples
Verify the finished angle sequence, cut quality and assembly geometry.

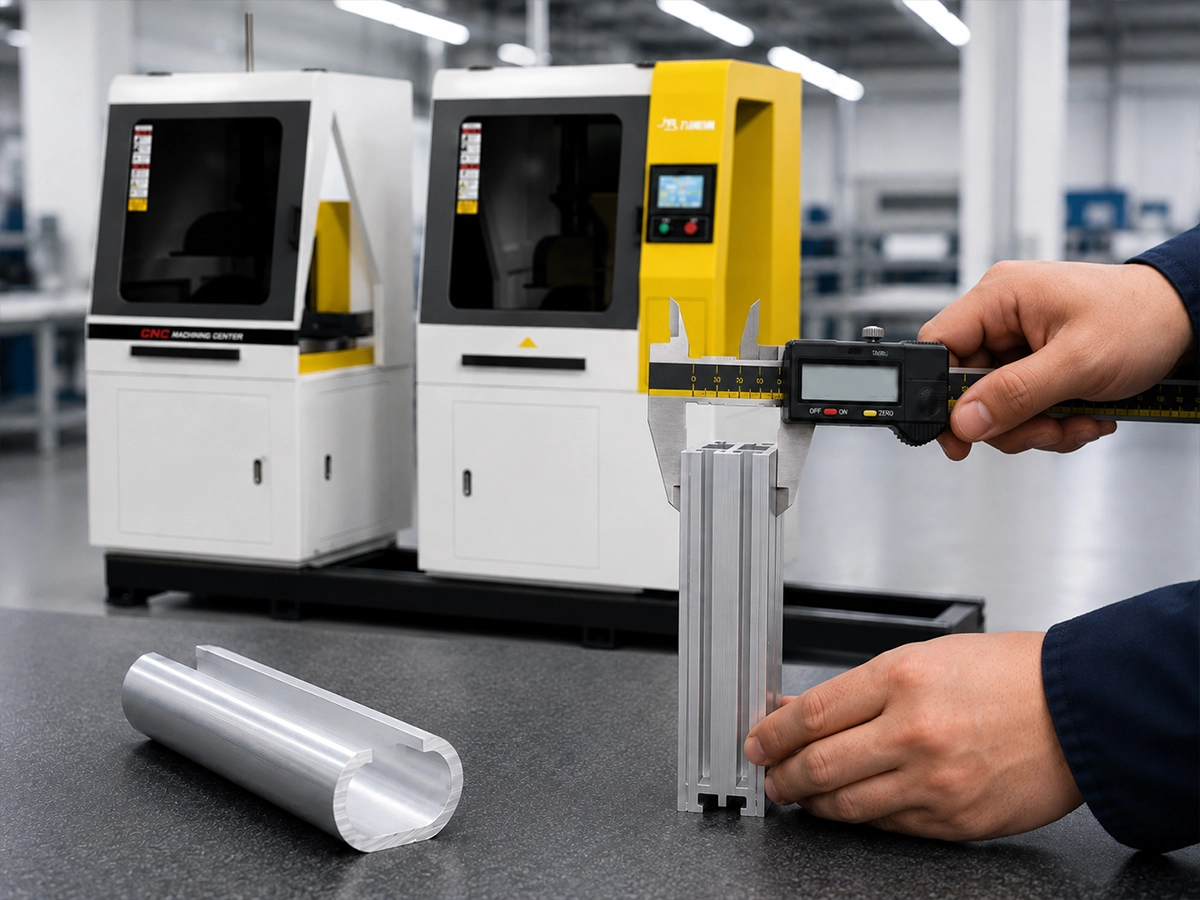

Inspection and Assembly Fit
Dimensional inspection, angle verification and downstream assembly review.
ENGINEERING SOLUTION REVIEW
Send Your Drawing for a Practical Cutting Recommendation
Share the profile, finished-part requirements and production target. JiurunCut will review the machine direction, clamping concept and sample-cutting requirements.
Profile Data
- Profile section drawing
- Aluminum alloy and wall thickness
- Original stock length
Cutting Requirements
- Finished length and cutting list
- Required cutting angles
- Length and angle tolerance
Production Target
- Daily or monthly output
- Visible-surface requirement
- Current cutting method and problem
Files & Logistics
- Finished-part drawing or photo
- Representative sample availability
- Destination country
DWG, DXF, STEP and STP files can be compressed into a ZIP archive before uploading. Up to 3 files, maximum 20 MB each.
BUYER FAQ
Aluminum Cutting Solution Questions
How do I choose the right aluminum cutting solution?
Start with the real profile section, finished length, cutting angle, tolerance, visible surfaces, batch volume and current production bottleneck. JiurunCut then matches those inputs to a machine and fixture direction.
What information should be included in the profile drawing?
Include the cross-section, overall dimensions, wall thickness, cavities, ribs, visible surfaces and safe clamping areas. A finished-part drawing is also useful when holes, notches or assembly datums matter.
Can one machine cut several aluminum profile families?
Possibly, when the profiles can share a practical feeding, support and clamping strategy. Each profile family and cutting list should still be reviewed before the final configuration is confirmed.
Which solution is suitable for multi-angle cutting?
Multi-angle parts are normally evaluated around the JR-505CNC or JR-550CNC-CORNER direction, depending on the profile, angle sequence and finished-part requirement.
Can JiurunCut evaluate material waste and remaining tail material?
Yes. Send the original stock length, cutting-length list and order quantities so nesting, cutting sequence and a realistic remaining tail can be reviewed.
Is sample cutting available before machine selection?
Yes, subject to representative material, available drawings and an agreed evaluation scope. The review can include cut face, dimensions, angle and assembly fit.
Does JiurunCut provide overseas installation and technical support?
JiurunCut provides a one-year warranty and lifetime technical support. Overseas installation or on-site service depends on the destination and the agreed project scope.
GET AN ENGINEERING REVIEW
Send the Profile Drawing. Get a Cutting Plan Based on Real Production Data.
Tell us the profile section, cutting length, angle, tolerance and required output. JiurunCut engineers will review the suitable machine platform, clamping direction and sample-cutting plan.
