Long Structural Profiles
CHALLENGE
Long stock, finished-length consistency and stable material support.
WHAT WE REVIEW
Support datum · material flow · finished length · batch repeatability
Send Your Rail Profile DrawingRail Transit Aluminum Cutting Engineering
Rail Transit Aluminum Cutting Solutions for Long, Large-Section & Reinforced Profiles
Send the rail profile section and available cutting list. JiurunCut reviews long-stock support, reinforced geometry, feeding, finished-length datum and consecutive sample requirements before proposing a cutting configuration.
Start with: Cross-section · Stock length · Finished lengths · Support · Inspection datum
Long-Profile Support ReviewFinished-Datum PlanningConsecutive Sample ChecksDrawing-Based Selection
01 — UNDERSTAND THE PART
ENGINEERING INPUTS
What Determines the Cutting Strategy?

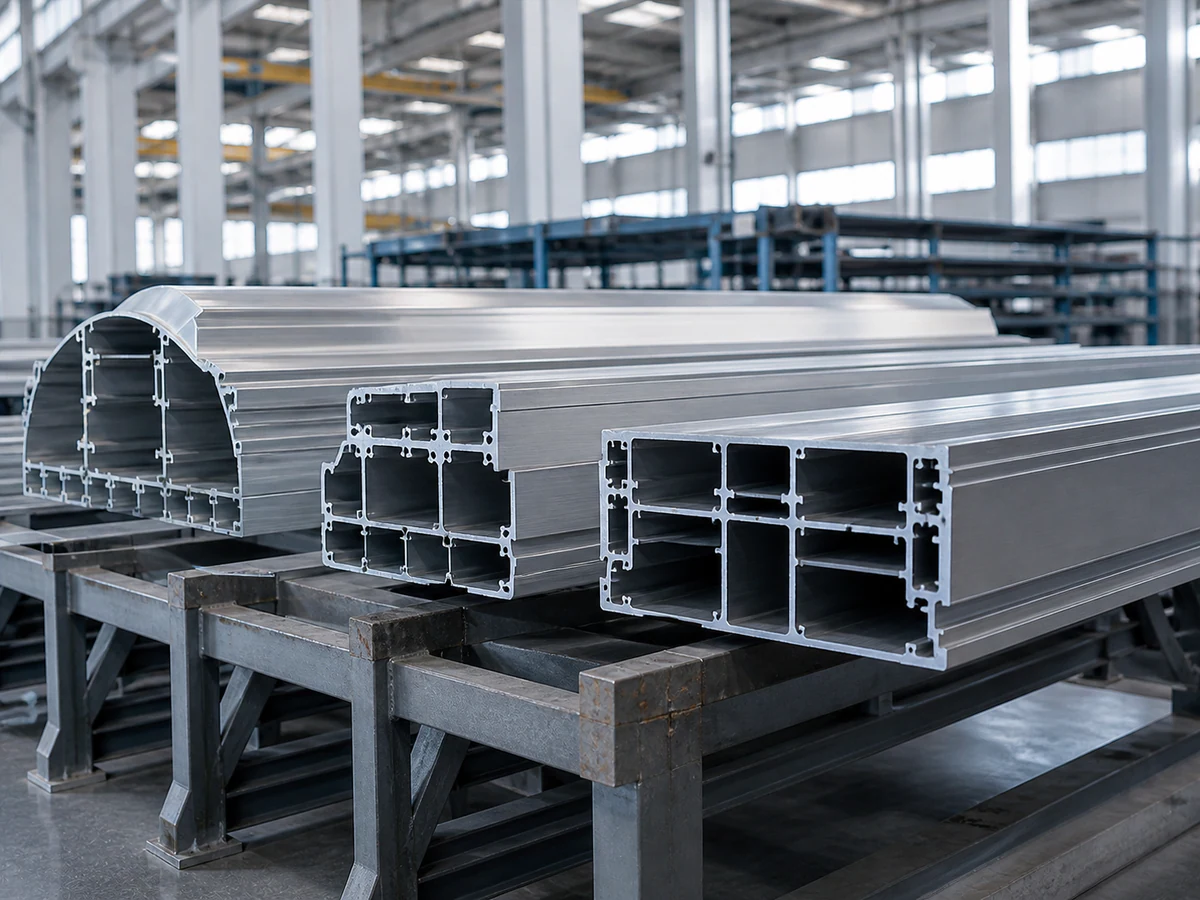

Profile Geometry
Large cross-section · reinforced cavities · wall thickness
Length
Stock length · finished length · cut list
Datum & Assembly
Inspection datum · mating surface · downstream fit
Output
Batch size · repeatability · production target
BUYER FIT
Is This Cutting Solution Right for Your Rail Aluminum Profile?
Start with the real extrusion and finished part—not the machine model.
PARTS
Long structural extrusions, large multi-cavity profiles, floor / frame sections and reinforced structural components.
MAIN CONCERNS
Long-stock support, large cross-section stability, finished-length datum, cut-face quality and batch repeatability.
PROCESS
Controlled material support, feeding, clamping, circular-saw cutting and representative inspection.
MACHINE DIRECTION
JR-650CNC-3A-1S as a starting direction, subject to drawing review.
WHAT TO SEND
Cross-section drawing, stock length, finished length, tolerance, cut list and production target.
TYPICAL RAIL PROFILE PARTS
Which Rail Aluminum Profile Are You Cutting?
Part geometry decides the support, clamping, datum and cut sequence before a machine direction is selected.
02

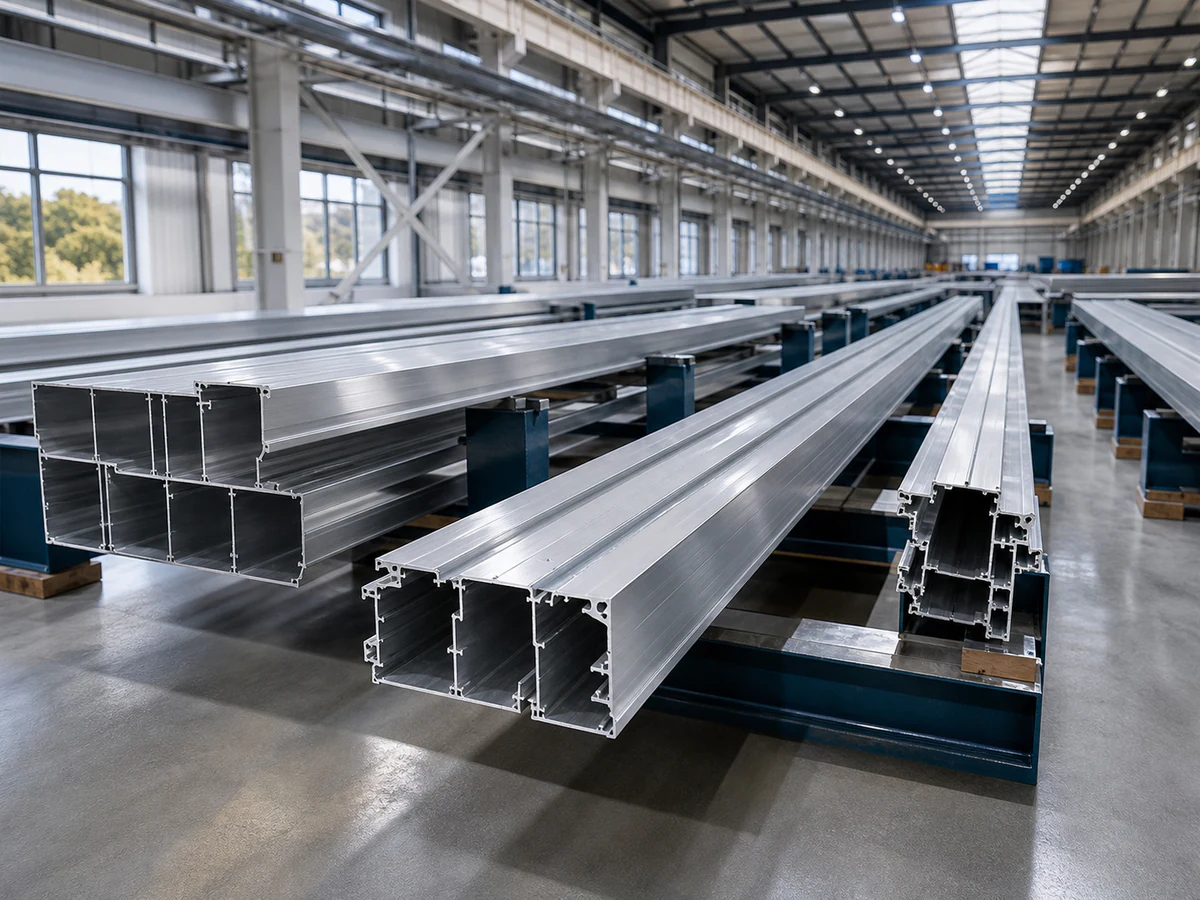

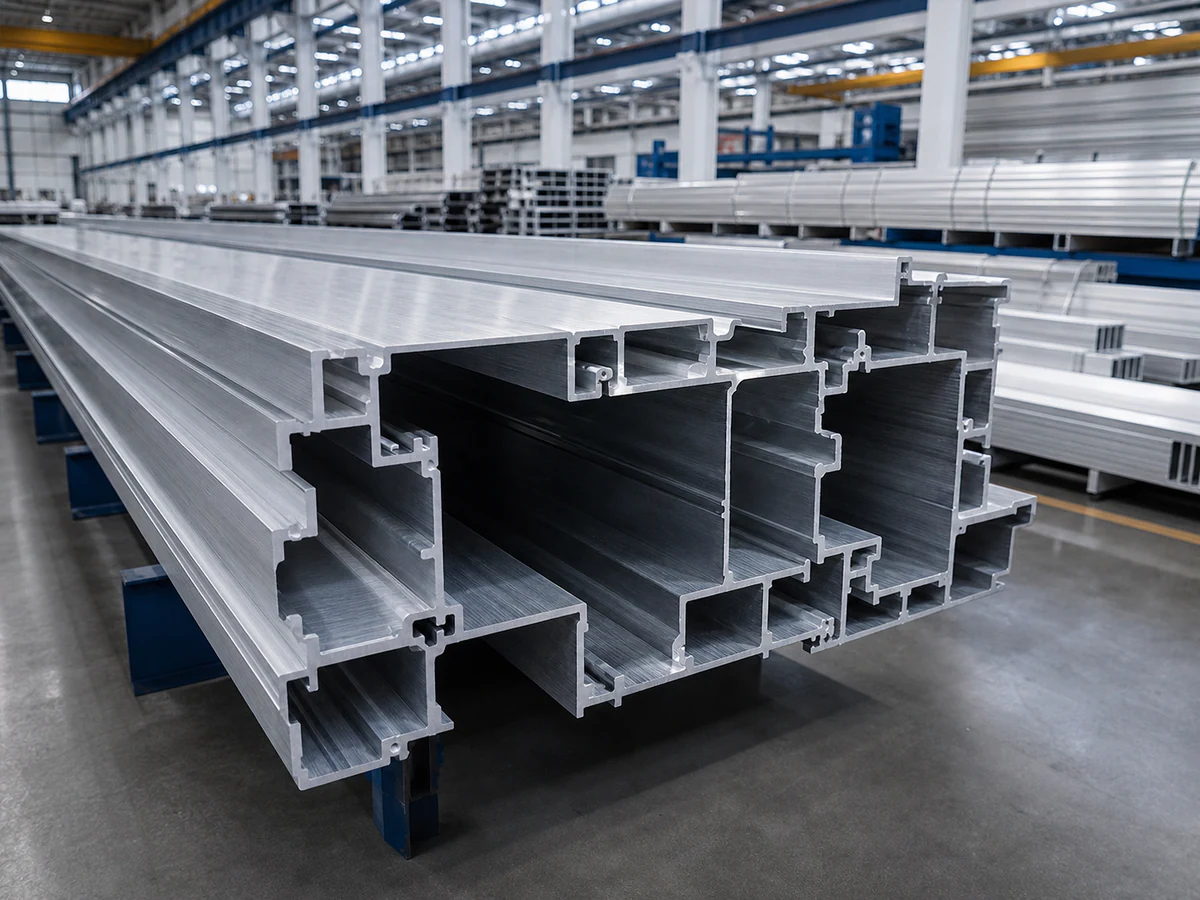

Large Multi-Cavity Extrusions
CHALLENGE
Large section, reinforced internal ribs and non-uniform support geometry.
WHAT WE REVIEW
Fixture contact · wall support · cross-section stability · cut face
Send Your Rail Profile Drawing
03

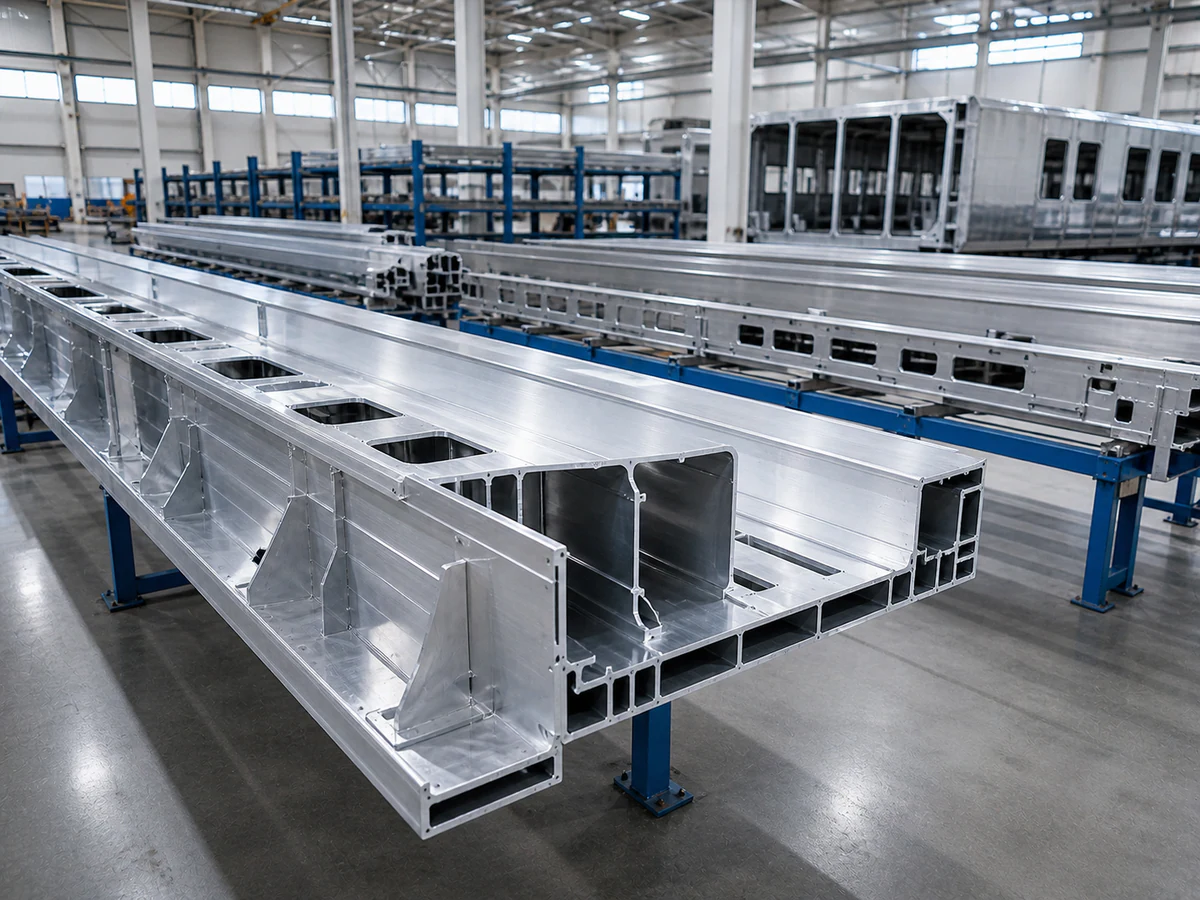

Floor / Frame Structural Sections
CHALLENGE
Structural geometry and downstream assembly datum.
WHAT WE REVIEW
Datum · finished geometry · support · assembly fit
Send Your Rail Profile Drawing
04

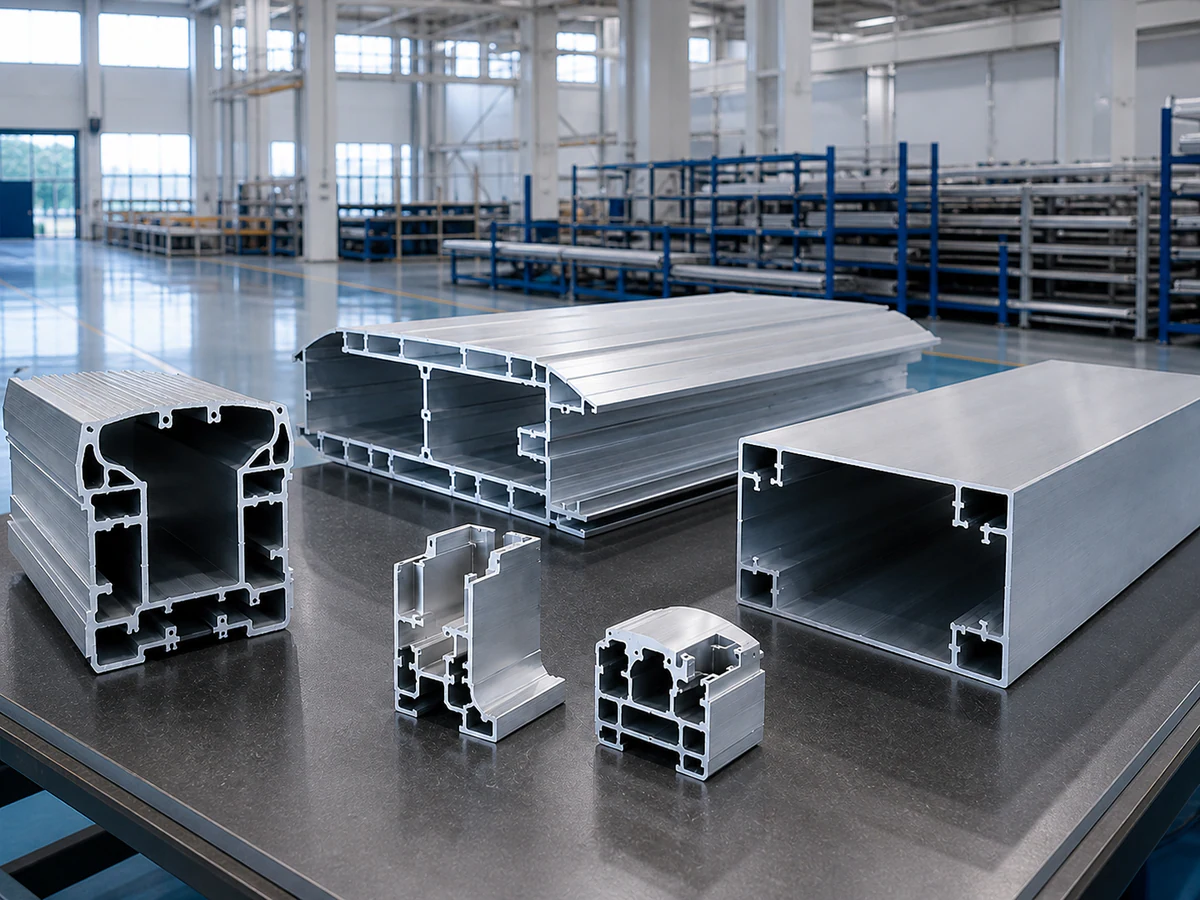

Custom Reinforced Components
CHALLENGE
Irregular reinforced geometry and changing production requirements.
WHAT WE REVIEW
Cross-section · cut list · fixture concept · inspection plan
Send Your Rail Profile DrawingENGINEERING DECISIONS
Long Profiles Create Different Cutting Problems
The machine is selected around the real profile, not around a generic catalog specification.
01

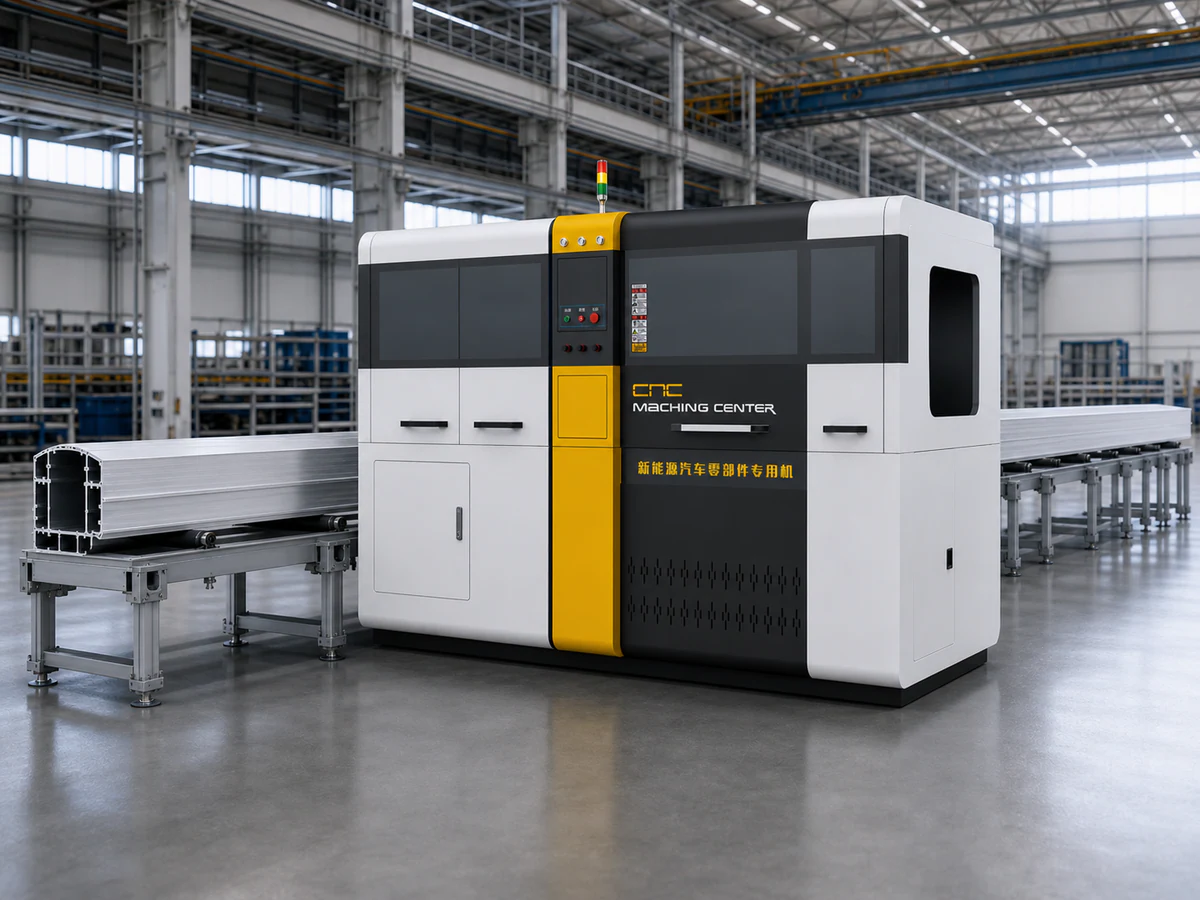

Support Over Long Stock
THE RISK
Long material can change position when support is not planned around the real stock.
JIURUN ENGINEERING RESPONSE
Review stock length, support points and material flow before selecting the cutting setup.
02

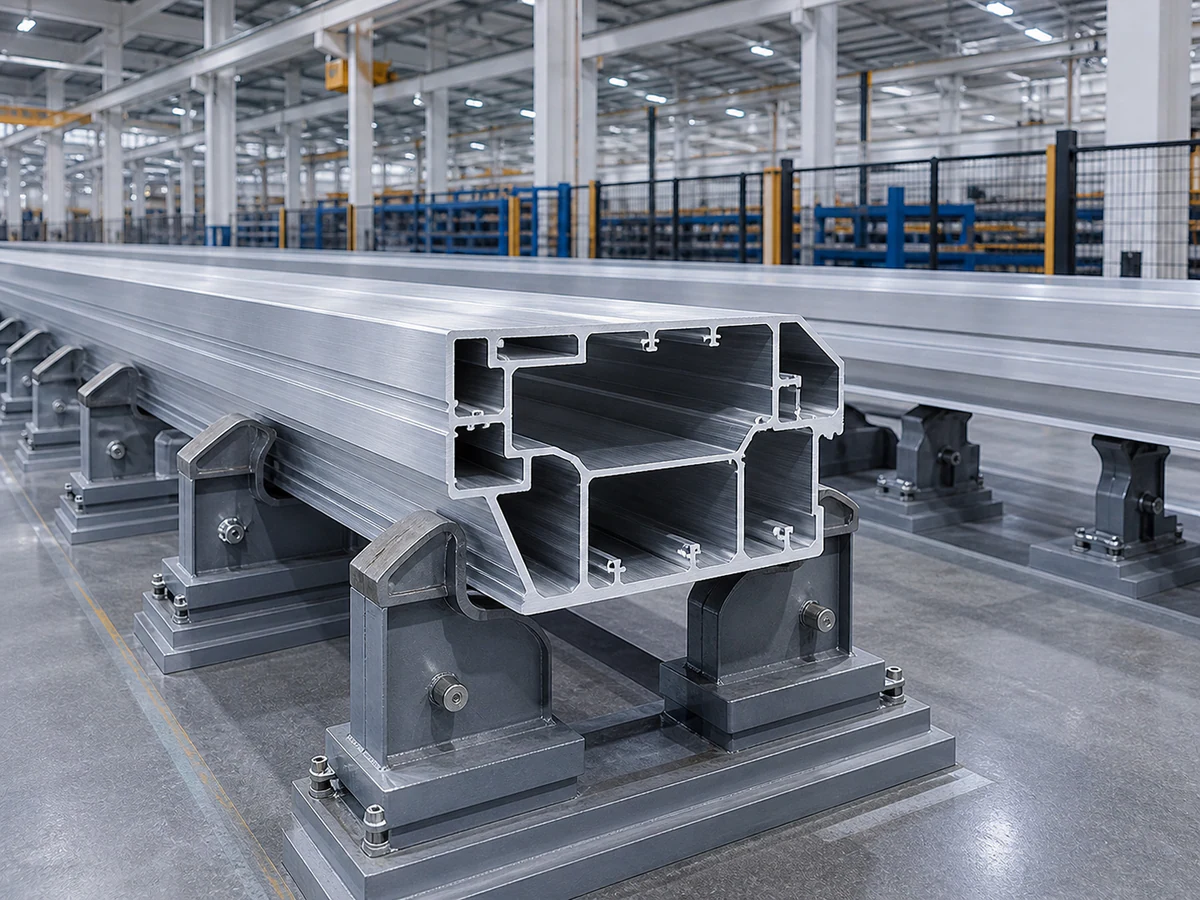

Large Cross-Section Stability
THE RISK
Large sections and internal reinforcement do not behave like ordinary small profiles.
JIURUN ENGINEERING RESPONSE
Support and clamp contact are selected from the real cross-section.
03
Finished-Length Datum
THE RISK
A long component can be cut consistently but still be inspected from the wrong datum.
JIURUN ENGINEERING RESPONSE
Finished length is defined from the agreed inspection and assembly reference.
04
Repeat Production
THE RISK
One acceptable sample does not prove batch consistency.
JIURUN ENGINEERING RESPONSE
Representative consecutive samples are reviewed before production approval.
02 — BUILD THE CUTTING STRATEGY
ENGINEERING DECISION PATH
From Large-Section Drawing to Stable Long-Material Cutting
Each decision follows from the finished part, its datum and the production requirement.
We start with the real part and its cutting requirement.
01PROFILE GEOMETRY
Large cross-section · reinforced cavities · wall thickness
02STOCK & FINISHED LENGTH
Stock length · finished length · cut list
03DATUM & ASSEMBLY
Inspection datum · mating surface · downstream fit
04OUTPUT
Batch size · repeatability · production target
05SUPPORT & FEEDING
Long-material support + feeding + clamping
06SAMPLE CUT
Representative profile cutting
07VERIFY
Finished length + cut face + repeatability
08PRODUCTION APPROVAL
Review the representative result against the agreed project requirement.
CUTTING STRATEGY
Different Rail Profiles Need Different Cutting Strategies
Review the real rail profile geometry, support, cutting requirements and agreed inspection method before selecting the machine configuration.
01
Support Over Long Stock
WHY THIS DIRECTIONLong material can change position when support is not planned around the real stock.
Send Your Rail Profile Drawing
02
Large Cross-Section Stability
WHY THIS DIRECTIONLarge sections and internal reinforcement do not behave like ordinary small profiles.
Send Your Rail Profile Drawing
03
Finished-Length Datum
WHY THIS DIRECTIONA long component can be cut consistently but still be inspected from the wrong datum.
Send Your Rail Profile DrawingMACHINE DIRECTION
Machine Direction After Rail Profile and Support Review
The board below shows two starting directions, not a final machine promise.

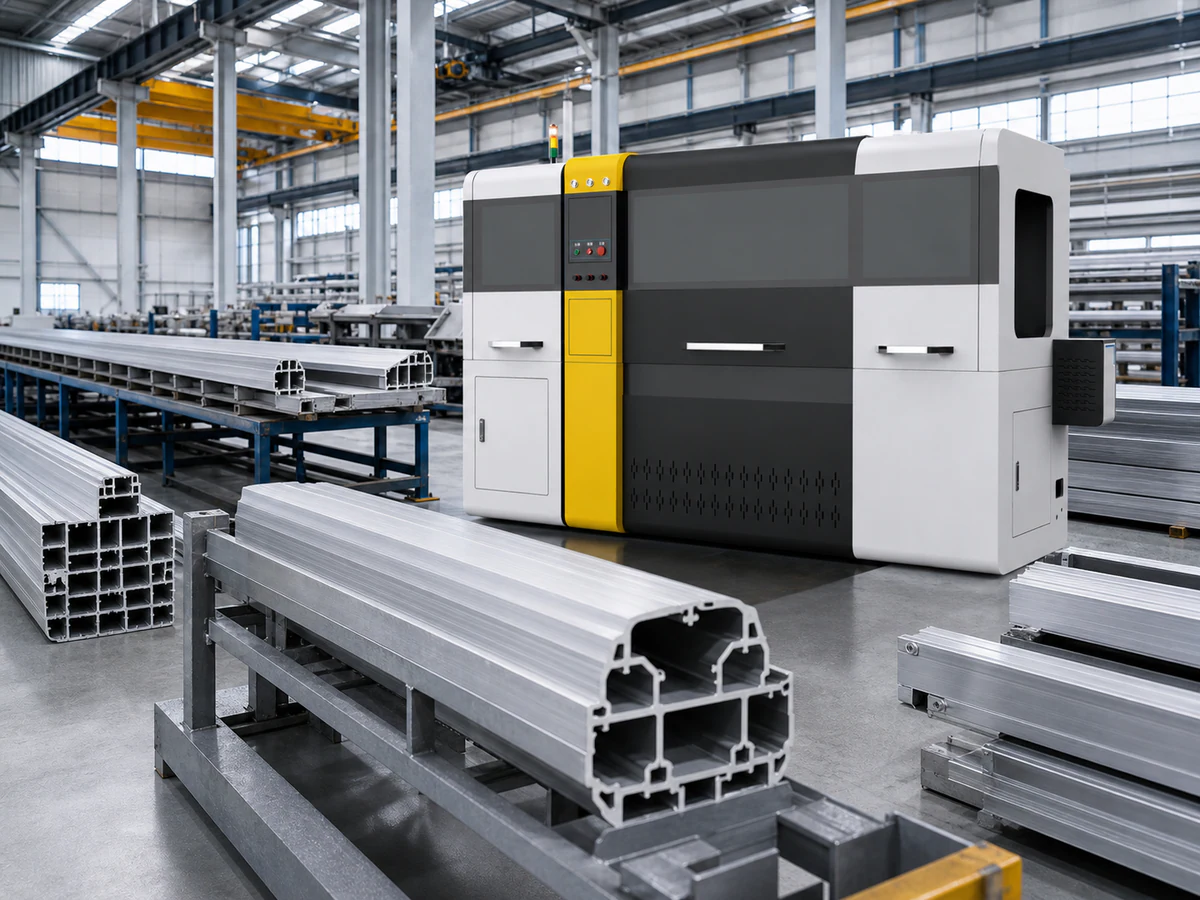

JR-650CNC-3A-1S
Long-Profile Cutting Review
- BEST STARTING POINT
- Long or reinforced aluminum extrusions.
- SELECTION TRIGGER
- Support, feeding and finished-length control are central.
- ENGINEERING REVIEW
- Exact 650 configuration, section drawing, stock length and sample plan.
- SUITABLE WHEN
- The proposed configuration passes the agreed part inspection.
CONFIGURATION REVIEW

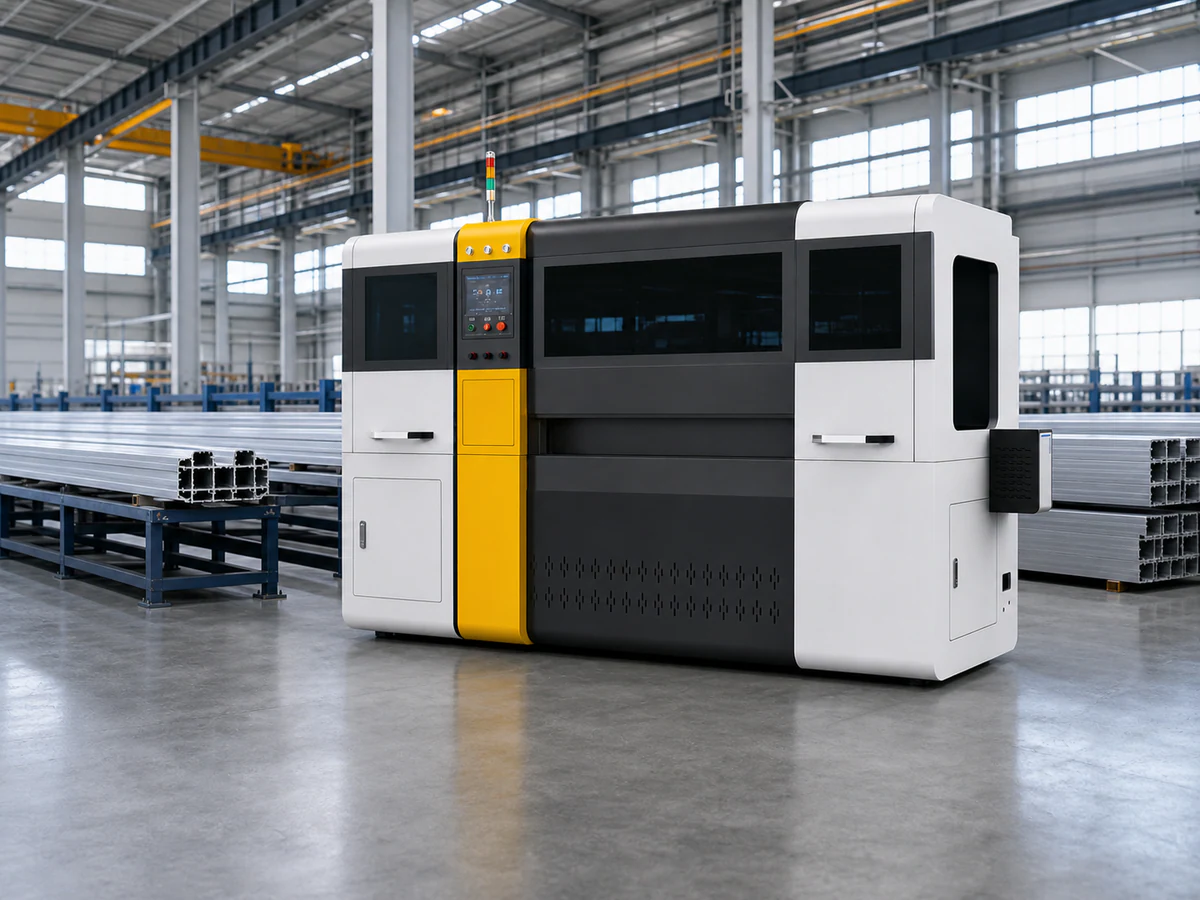

Support & Feeding Configuration Review
- BEST STARTING POINT
- Long-stock support and feeding requirements.
- SELECTION TRIGGER
- The real profile needs additional support or handling review.
- ENGINEERING REVIEW
- Support positions, feeding travel, discharge and safe collection.
- SUITABLE WHEN
- This is engineering configuration review, not another model or a standard package.
Machine and accessory configuration is confirmed from the actual section, required cuts and representative sample results. Brochure feeding travel is not a finished-part length guarantee.
03 — VERIFY BEFORE PRODUCTION
ENGINEERING PROCESS
From Rail Profile Drawing to Production Approval
A practical review sequence for profile geometry, clamping, cutting and inspection.
01
SEND
Send the cross-section, finished-part or joint drawing, stock and finished lengths, quantities and inspection requirements.
02
REVIEW
Review geometry, safe contact areas, the cutting list and the agreed acceptance criteria.
03
CONFIGURE
Plan the machine direction, support, clamping, feeding or positioning and protected collection.
04
VERIFY
Check representative parts for finished dimensions, cut-face condition, repeatability and the required fit.

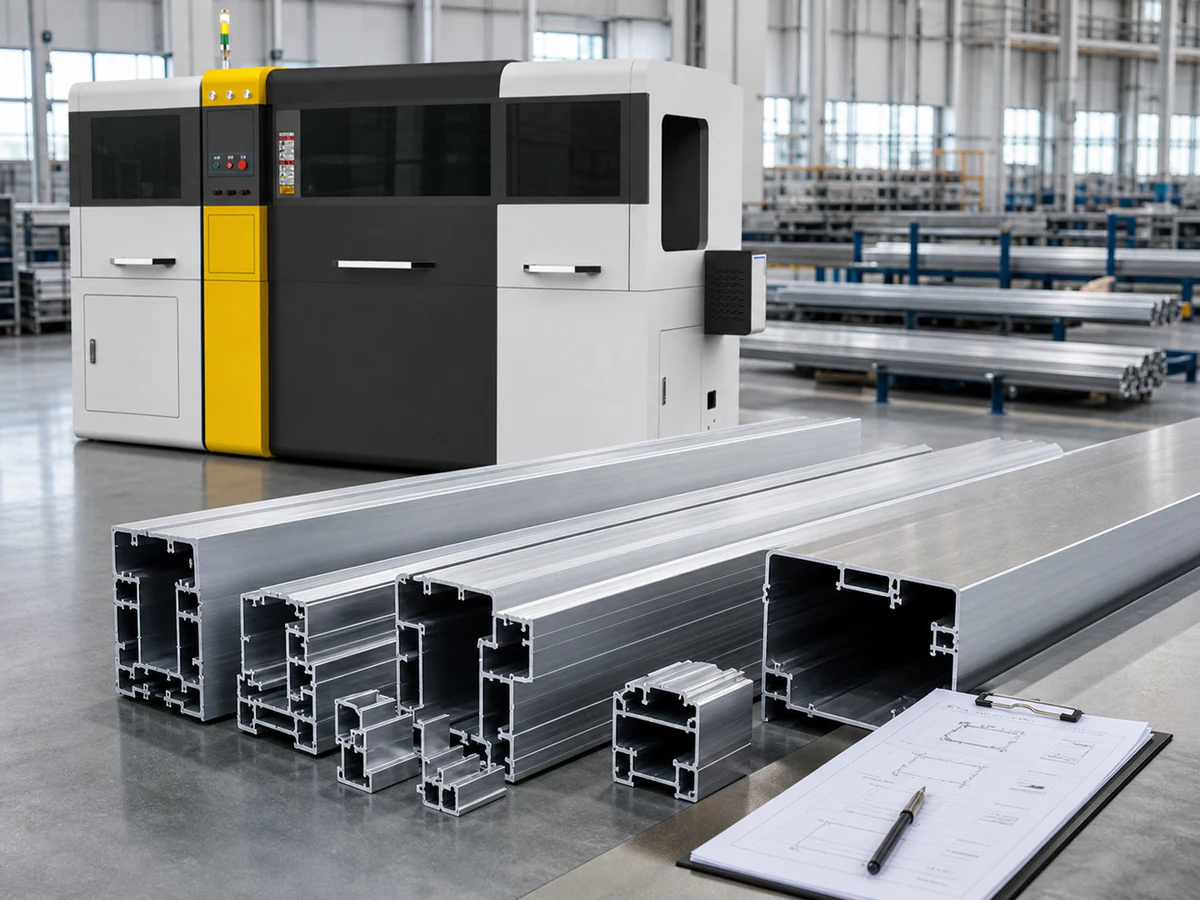

Engineering images illustrate the review and inspection topics. Representative sample results are agreed for the actual application.
PROVE BEFORE PRODUCTION
Approve the Finished Rail Component, Not Just the Machine
Agree representative sections, finished lengths and inspection criteria before sample cutting. Confirm the full support, cutting and collection sequence.
A Representative Test Should Include

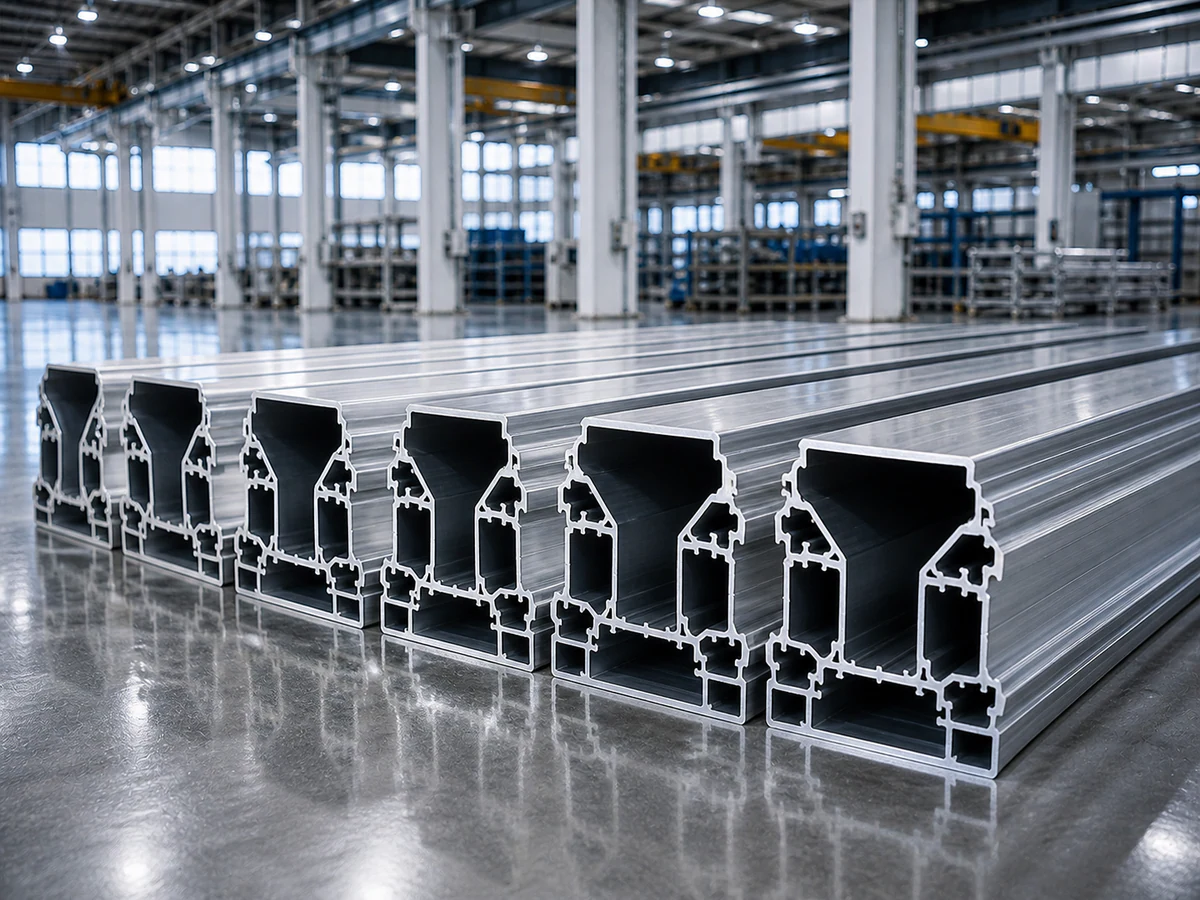

01

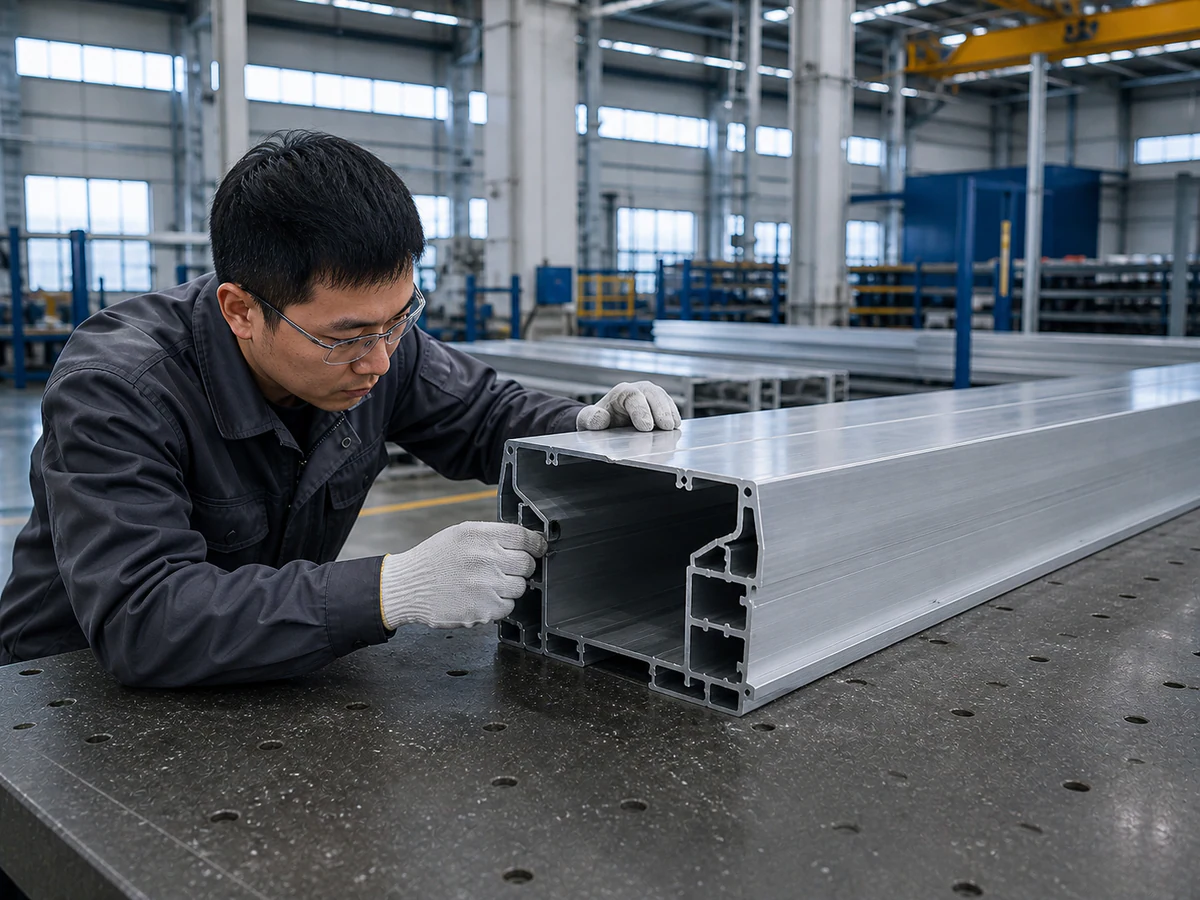

CUT FACE
Check cut-face and reinforced wall condition.
02

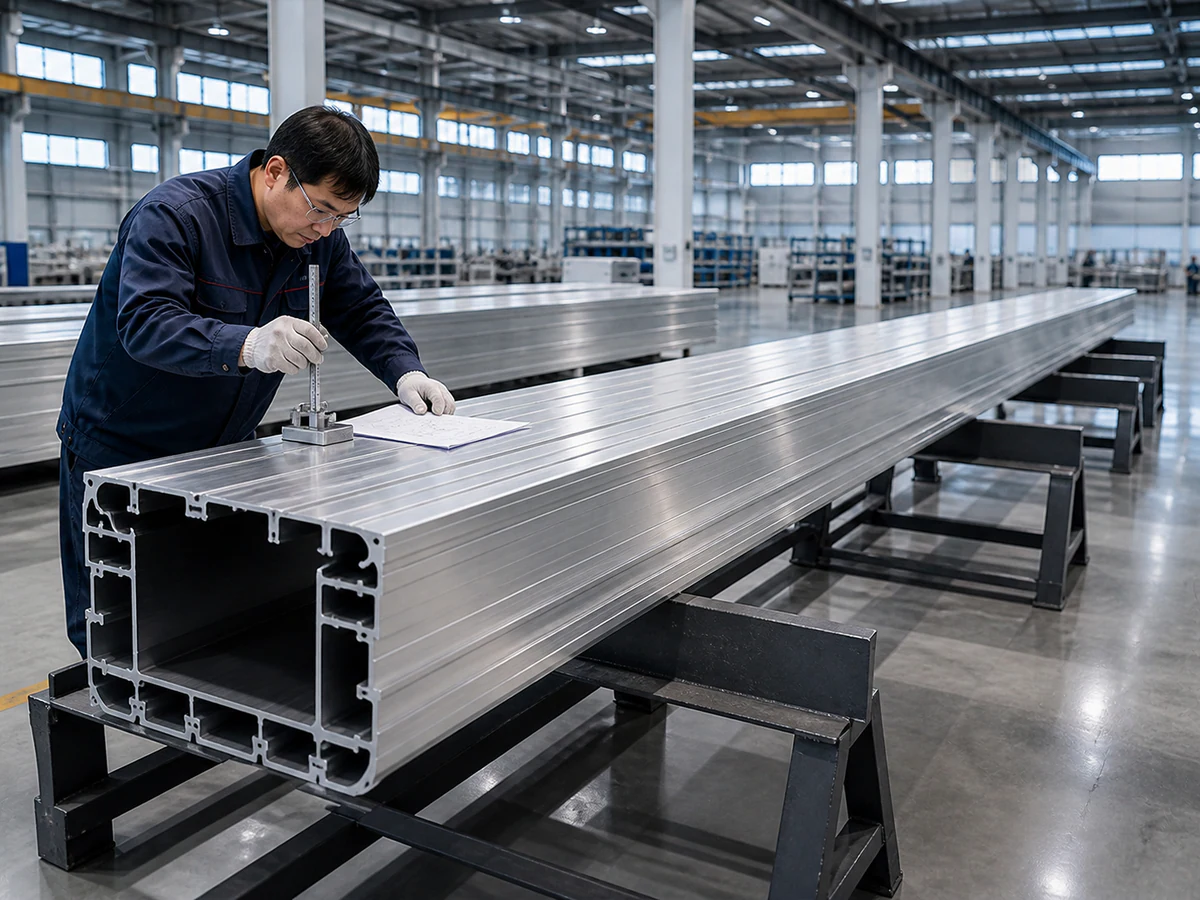

FINISHED LENGTH
Measure from the agreed finished-part datum.
03
ALONG-LENGTH SUPPORT
Check support contact through positioning and discharge.
04
REPEATABILITY
Compare several consecutive representative parts.
05
ASSEMBLY DATUM
Verify the important mating dimensions against the drawing.
BEFORE SHIPMENT
- 01Machine Assembly
- 02Feeding & Positioning
- 03Profile Clamping
- 04Representative Sample Cutting
- 05Length / Angle / Surface Verification
- 06Final Commissioning
FASTER ENGINEERING REVIEW
Send These 6 Items for a More Useful Rail Profile Review
Complete inputs help the engineering team review support, clamping, machine direction and sample-cut criteria without guessing.
Share the real profile geometry and reinforced cavities.
Share the incoming long-material length.
Define the required completed component length.
Mark the inspection tolerance on the drawing.
Include recurring lengths and project quantities.
Share batch size and the production target.
Have only a profile photo? Send it first.Send Your Rail Profile Drawing
BUYER FAQ
Engineering Questions Before Machine Selection
Technical answers based on the real profile, production task and inspection requirements.
Can JiurunCut evaluate long rail-transit aluminum profiles?
Yes. JiurunCut reviews the real cross-section drawing, stock length, finished length, datum, cut list and production target before recommending the cutting process and machine direction.
How do you support very long aluminum extrusions?
Support points and material flow are planned from the actual stock length, section geometry and safe contact surfaces. The final support layout is confirmed during drawing and production review.
How are large multi-cavity rail profiles clamped?
Clamp and support contact are selected from the real cross-section, reinforced cavities, wall structure and visible surfaces. A generic clamp position is not assumed.
How do you verify finished length on long parts?
The finished-length datum is agreed from the inspection and downstream assembly reference. Representative consecutive samples can then be checked from the same datum.
Can reinforced structural profiles be sample cut before purchase?
Yes, when representative profile material and drawing requirements are available. Sample cutting can review cut surface, finished length, datum, repeatability and assembly fit.
Which Jiurun machine is suitable for rail-transit aluminum profiles?
JR-650CNC-3A-1S is a starting machine direction for review. Final configuration remains subject to the real cross-section, stock and finished lengths, tolerance, cut list, support requirement, batch size and production target.
Can the system handle repeated batch production?
The production direction can be reviewed for repeated batches, but one sample does not prove consistency. Representative consecutive samples and the agreed inspection method are used before production approval.
What information should I send for machine selection?
Send the cross-section drawing, stock length, finished length, tolerance, cut list, inspection datum, batch size, production target and any visible-surface or assembly requirement.
Need a cutting direction for your rail profile application?Send the drawing and available production requirements for engineering review.
Send Your Rail Profile Drawing Need a cutting direction for your rail profile application?
Send Your Rail Profile DrawingSend the drawing and available production requirements for engineering review.
