AUTOMATIC FEEDING, SAWING & MATERIAL HANDLING

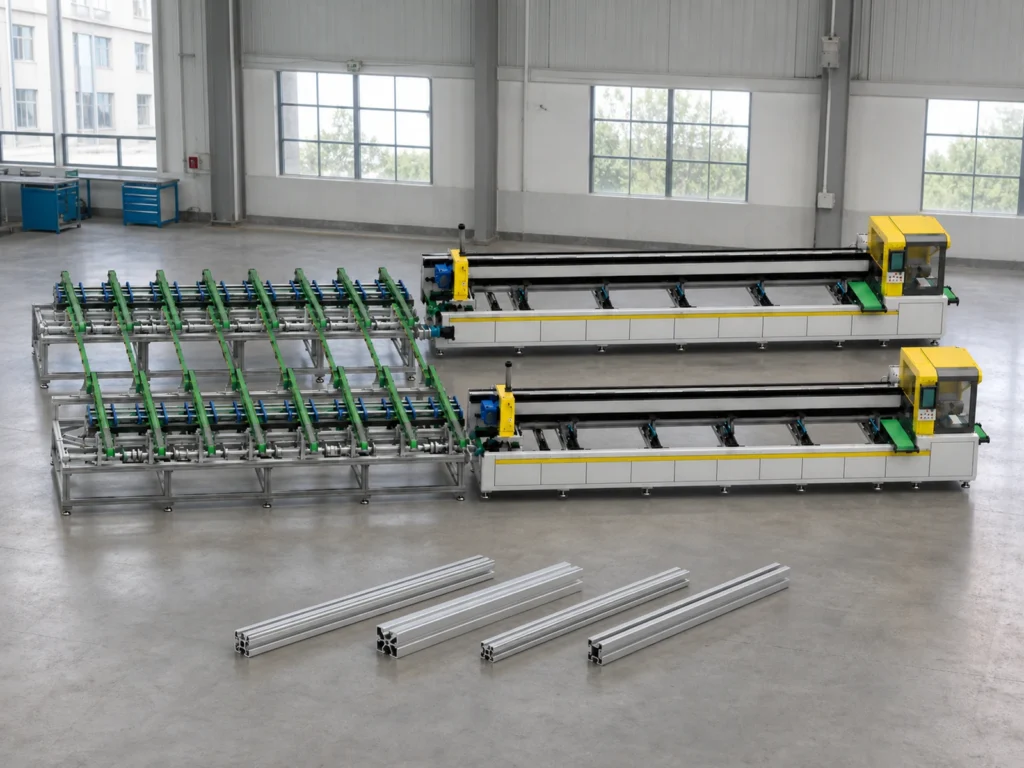

Aluminum Extrusion Cutting Line for Integrated Production
Connect long-material feeding, positioning, circular-saw cutting and part handling into a production line built around extrusion output.
Send extrusion drawings, upstream line speed, stock or puller output, finished-length plan and downstream needs. JiurunCut engineers will review interfaces before defining the line.
Get a recommendation based on your real profile, production data and inspection target.
Why this machine
Why Extrusion Cutting Must Be Engineered as a Line
Interface With Upstream Equipment
Define signals, speed changes and accumulation between extrusion and saw.
Support Long Material Continuously
Plan rollers, guidance and surface protection along the route.
Coordinate Cut and Discharge
Prevent finished parts from disrupting the next feed cycle.
Profile / part fit
Will the Cutting Line Match Your Extrusion Process?
01 · Profile geometry
Upstream equipment and line-speed data
Use the real cross-section, alloy and wall thickness as the first selection gate.
02 · Production data
Profile range, orientation and temperature
A line is selected from material flow, interfaces, profile range, finished-length mix and output—not the saw alone.
03 · Acceptance target
Finished-length program and cut-list mix
Usable capacity, support and clamping are confirmed only after the drawing and cutting orientation are reviewed.
Include the cross-section, wall thickness, stock length, finished lengths, tolerance and output target.
Key technical data
Aluminum Extrusion Cutting Machine Technical Specifications
Use verified application data to shortlist the machine. Final capacity, fixture design and performance values are confirmed from the real profile and process.
Configuration review: Capacity, blade, motor, speed, tolerance, cycle and machine footprint are confirmed for your application after your profile, cut plan and final configuration are reviewed.

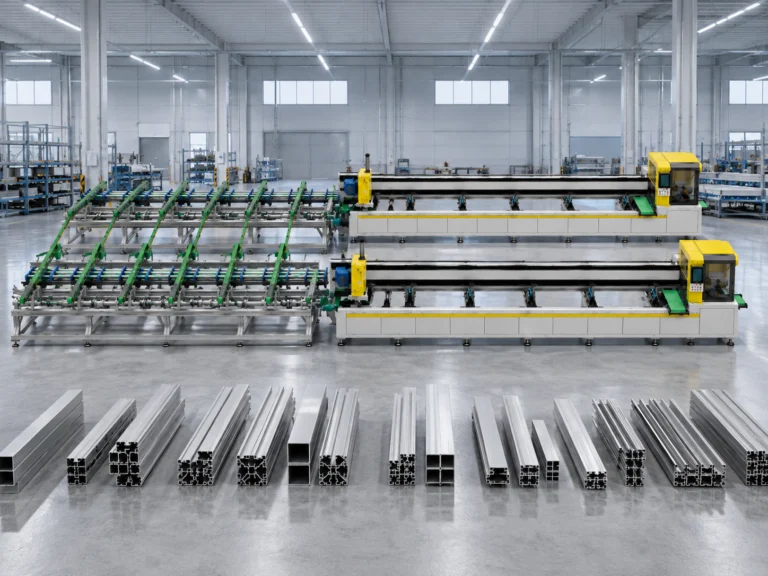

Brochure reference: JR-650CNC automatic feeding production line
Repeat positioning accuracy describes the feeding system; it is not a universal finished-part tolerance. The saw module, usable profile range, storage layout and upstream handoff are selected for the production line. The brochure does not provide one fixed motor, blade or cutting-capacity table for every line layout. Source: Brochure PDF page 18 (printed page 17).
View Full Technical Specifications ↓
Production workflow
How the Aluminum Extrusion Cutting Machine Works

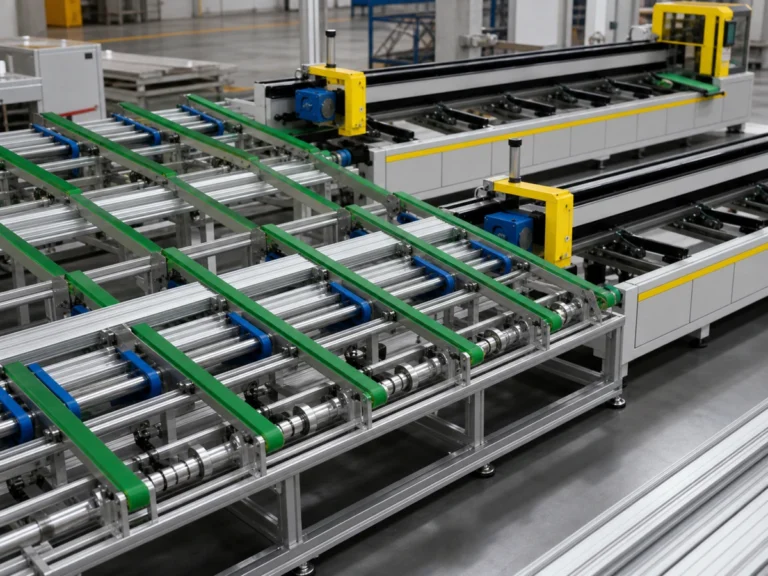

RECEIVE & SUPPORT
Accept the extrusion into the confirmed guide and support route.

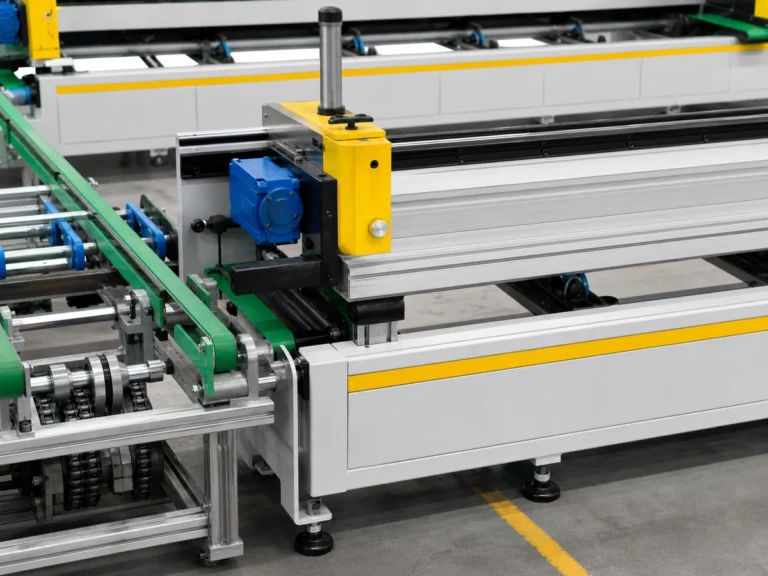

POSITION, CLAMP & CUT
Coordinate length positioning, profile stability and the saw cycle.
DISCHARGE & HAND OFF
Move finished parts to sorting, inspection or the downstream station.

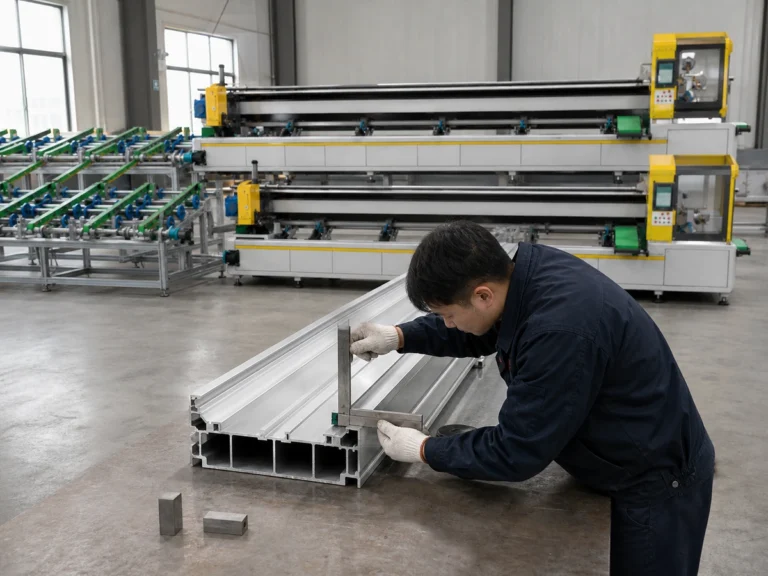

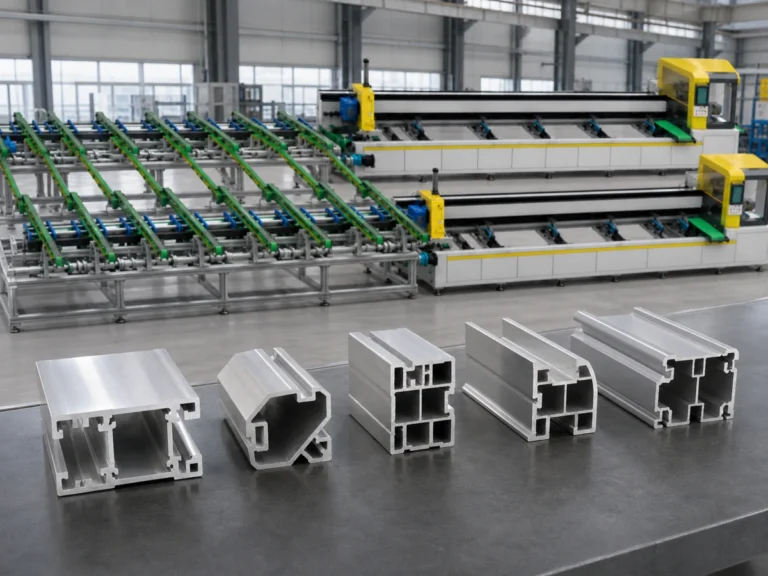

Cut result verification
Verify Line Interfaces Before Final Approval
Use representative material and agree the dimensional, surface and process acceptance points before the test.
Machine / configuration selection
Which Aluminum Extrusion Cutting Machine Route Fits Your Production?
Integrated extrusion line
For coordinated feeding, sawing and downstream handling.
- LINE INTEGRATION
- LONG-MATERIAL FLOW
- CONTROLLED CUTTING
Standalone automatic saw
For stock-bar production independent of upstream equipment.
- Upstream equipment and line-speed data
- Profile range, orientation and temperature
- Finished-length program and cut-list mix
Flexible CNC saw
For varied offline jobs and program-controlled lengths.
- Line layout and footprint
- Upstream equipment and signals
- Profile range and temperature
For an engineering recommendation
Send the Data That Changes the Machine Configuration

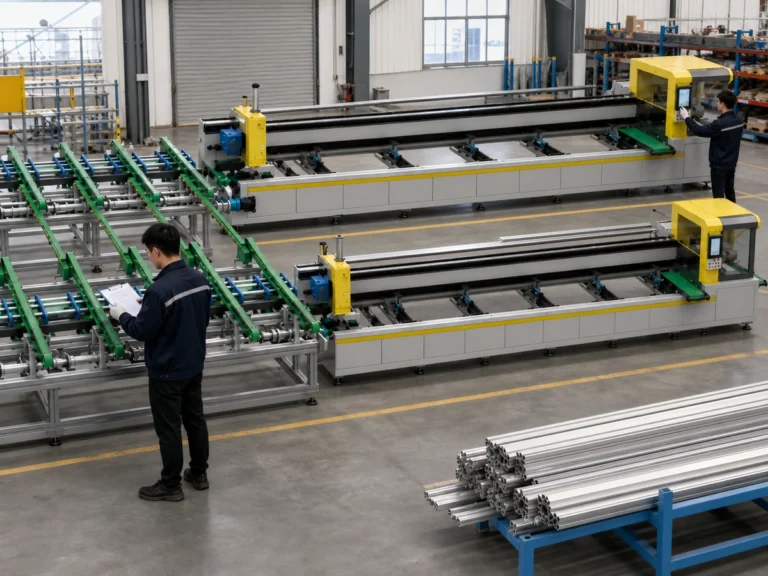

Factory testing & delivery
What We Check Before Delivery
Test evidence is project-specific; no fabricated production result or universal performance claim is used.

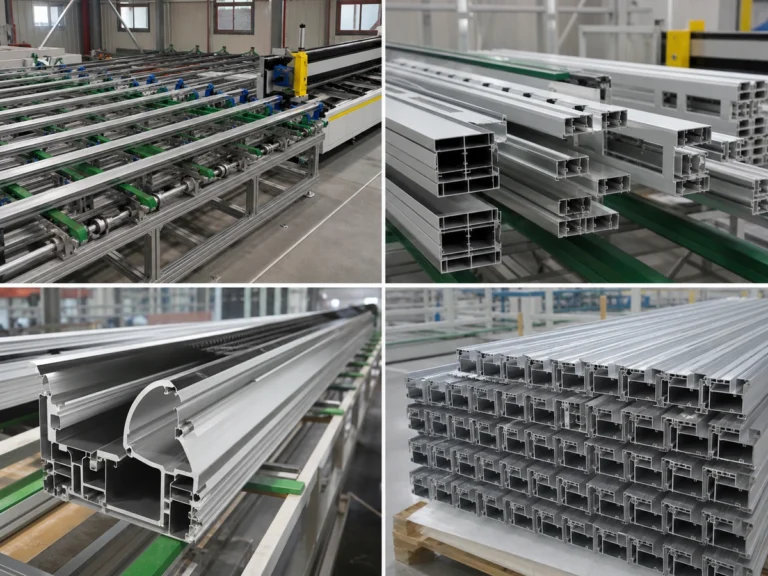

Applications
Aluminum Extrusion Cutting Machine Applications
See typical applications for the aluminum extrusion cutting machine. Final suitability is reviewed from the drawing, material, process and output requirement.
Extrusion Press Integration
Receive and support long material from an upstream extrusion production route.
Review application →

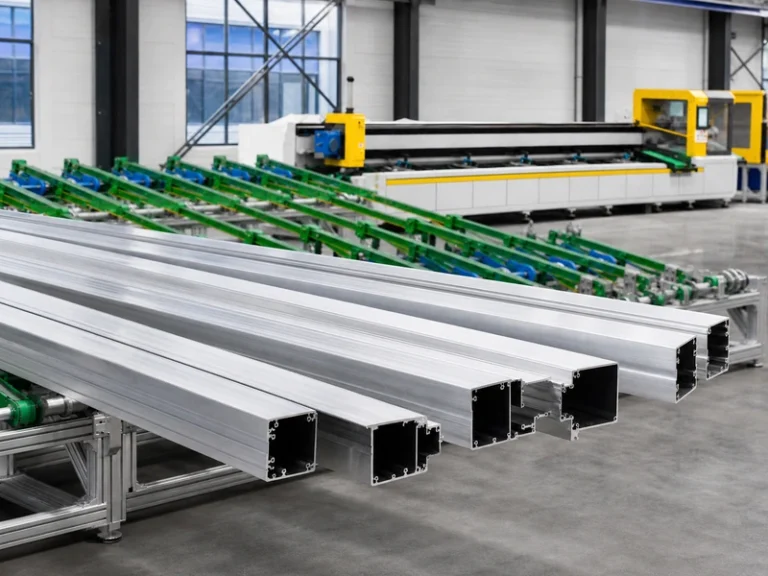

Long Aluminum Profiles
Plan feeding, support and discharge around stock length and workshop space.
Review application →

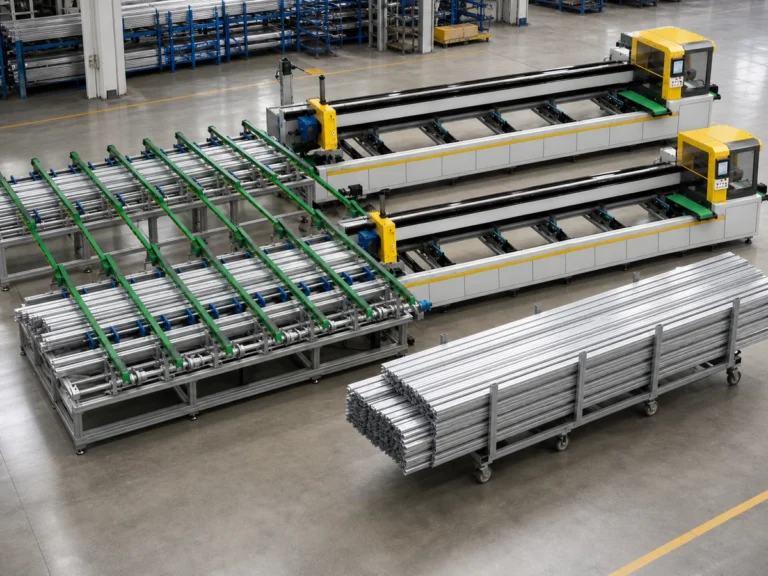

Repeat Cut-to-Length
Automatic sawing for approved lengths and production sequences.
Review application →
Downstream Handling
Coordinate cut-part discharge with collection, inspection or the next operation.
Review application →
Production-Line Material Flow
Review buffer, loading direction and operator access as one integrated process.
Review application →
Custom Line Projects
Configure the line from real section data, output targets and factory constraints.
Request engineering review →Buyer FAQ
Aluminum Extrusion Cutting Machine Buyer Questions
What is needed to design an extrusion cutting line?
Provide layout, upstream equipment, profile range, temperature, line speed, finished lengths, output and downstream handling.
Can the saw connect directly to an extrusion press?
Potentially, but handoff, buffering, speed, signals and safety must be engineered with the upstream supplier.
How are long extrusions supported?
The route is configured around rigidity, straightness, surface requirements and floor space.
Does profile temperature affect accuracy?
It can. Define operating temperature and measurement method when tight length control is required.
Can the line sort several finished lengths?
Sorting and discharge logic can be reviewed from the cut list, part size and downstream process.
How are chips controlled?
Extraction, guarding, cleaning access and chip containment must be included in the layout.
Can the line process several profiles?
Each profile requires approval for orientation, support, clamping, blade path and capacity.
How is factory acceptance planned?
Agree representative material, signals, output assumptions and dimensional checks before testing.
What support is available after delivery for this aluminum extrusion cutting machine?
Installation, training, remote technical support and spare-parts planning are arranged according to the confirmed aluminum extrusion cutting machine configuration and destination.
What should I send before requesting a quotation for this aluminum extrusion cutting machine?
Send line layout and footprint, upstream equipment and signals, profile range and temperature, finished lengths and output target, discharge and sorting, plus the destination country and factory electrical standard.
